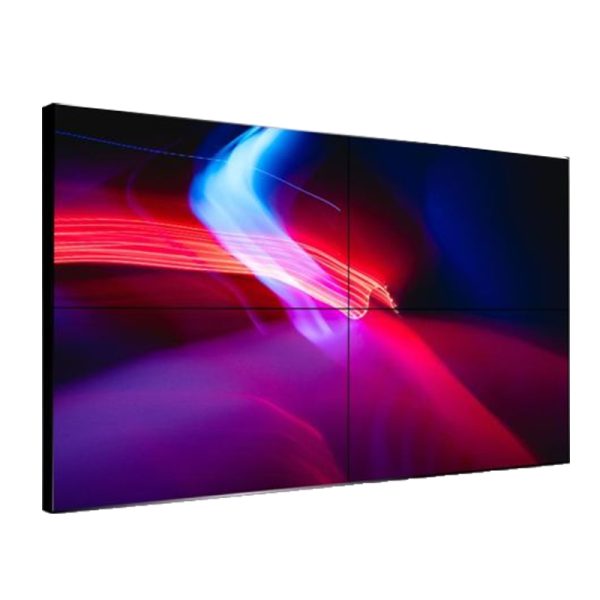

KEY FEATURES |
|
|
-Using original industrial grade IPS (DID) LCD splicing panel. -Adopt direct down LED backlight technology and shimity of screen brightness. With 1920×1080/3840×2160 resolution, it can restore ultra-high resolution original image display by splicing. – Adopt high heat dissipation body design, support 7×24 hours continuous work, long service life. -Adopt module unit assembly method, support embedded, wall-mounted, hanging and other installation methods.ne out film filter, which can ensure the high uniform. |
|
|
Product Specifications |
|
|
Product Line |
LED Splicing Screen |
|
Splicing thickness |
0.8MM |
|
Screen size |
65 inch |
|
Appearance color |
Black |
|
Input/output interface |
|
|
USB input |
1 x USB2.0, Max 480Mbps |
|
Audio speaker output |
Built-in speaker interface, supports up to 8Ω 10W dual channel speaker output |
|
Signal Input |
– Support 1 HDMI input, support version 2.0, maximum support 3840X2160@60Hz input – Support 1 channel DVI signal signal input, the maximum support 3840X2160@60Hz input. – Support RJ45 input and output, access to infrared receiver head and RS232 for device control and debugging. – 1-channel VGA input, 1-channel AV input Support 1-way USB multimedia video, picture, text file view, program upgrade – Support image 180-degree flip |
|
Electrical performance of the whole machine |
|
|
Power input |
65 inches |
|
LED Panel |
MP4955T-163V 1000 |
|
Input |
100-240V~,50~60Hz,3.8A,Max |
|
DC Output |
12V⎓4A |
|
Power consumption of the whole machine |
65 inches: 159w |
|
Main Hardware |
|
|
Memory |
All hardware architecture, no memory, no storage |
|
Built-in memory |
Not supported |
|
Memory Expansion |
Not supported |
|
WiFi |
Not supported |
|
Operating System |
All hardware architecture, no CPU and no OS |
|
Decoding Resolution |
Maximum resolution 3840X2160 60Hz |
|
Display performance parameters |
|
|
Product Model |
PV-654k-W0.8 |
|
Backlight Type |
LED |
|
Display size(mm) |
L1432.3x W808.5 |
|
Physical resolution rate |
4K (3840 x 2160), UHD |
|
Peak brightness of the whole machine |
500cd/㎡±30 |
|
Dynamic Contrast Ratio |
4000: 1 |
|
Visual View |
89/89/89/89 (Typ.)(CR≥10) |
|
Screen Ratio |
16:9 |
|
Display color |
16.7M (8-bit) |
|
Surface treatment |
matte surface |
|
Operating frequency |
60Hz |
|
Structure size (unit: mm) |
|
|
Overall size of the machine (Length × Height × Thickness) |
L1440.3 x H816.5 x W72.4 (W69.4 for removing the handle) |
|
Outer box packing size (Length × Height × Thickness) |
L1530 x H160x W907 |
|
Net weight of bare machine (KG) |
18.2 |
|
Gross weight of the whole machine (KG) |
20 (single unit load) |
