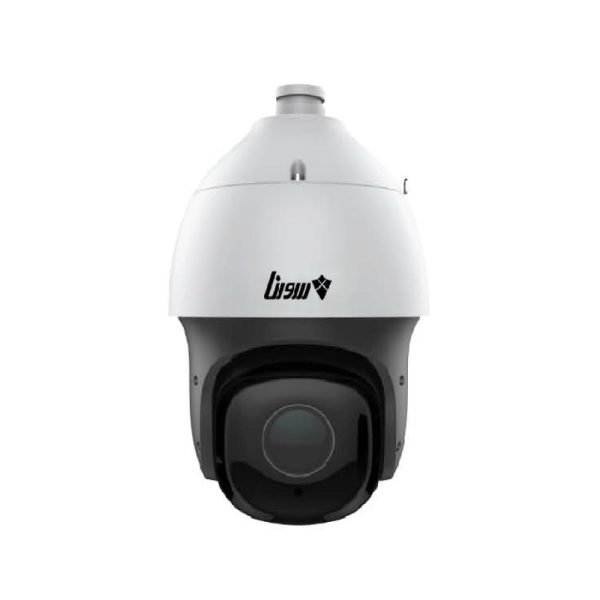

Sorena SR-2033P

توضیحات

KEY FEACTURE

·Up to 1920X1080@30fps

·Min. illumination Color: 0.001Lux@F1.5

·Optical zoom: 33x, digital zoom 16x

·Smart IR, IR Range: 200m

·S+265/H.265/H.264/M-JPEG

·Intelligent monitoring/ Face Capture mode

·Support Human/Vehicle Classification

·Support Auto-tracking

·Plugin Free

·IP66

Camera

Image Sensor

1/2.8″ CMOS

Min. Illumination

Color: 0.001lux@ (F1.6, AGC   ON), B/W:0lux with IR

Shutter Time

1s to 1/100,000s

Day & Night

IR Cut Filter with Auto Switch

WDR

120dB

S/N

<42dB

Lens

Focal Length

4.6mm~152mm

Optical Zoom

33X

Digital Zoom

16X

Zoom Speed

<5S

Aperture Range

F1.6 ~F4.3

Field of View

Horizontal filed of view: 60° (w)~2.3° (t),
Vertical filed of view: 34.4° (w)~1.5° (t),

Diagonal field of view:66.7°(w)~2.8° (t)

Focus Control

Auto, semi-auto, manual

Iris Control

Auto

Close Focus Distance

1000mm~1500mm

DORI Distance

Detect:1793m   Observe:711m    Recognize:358m   Identify:179m

Pan & Tilt

Pan Range

360°

Pan Speed

Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 240°/s

Tilt Range

-16°~90° (Default -3°~90°)

Tilt Speed

Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 120°/s

3D Position

Yes

Preset

500

Cruise

16, up to 32 presets per cruise

Scan

8

Pattern

8, each with 600s memory or 1000 orders

Scheduled Task

Preset, Cruise, Scan, Pattern

North Point

Yes (Manual Setting)

Power-off Memory

Yes

Preset Freezing

N/A

Illuminator

IR LEDs

10

IR Distance

Up to 200m

Wavelength

850nm

IR Irradiation Angle

Adjustable by Zoom

White LEDs

N/A

Whitelight Distance

N/A

Laser

N/A

Laser Distance

N/A

Compression Standard

Video Compression

S+265/H.265/H.264/M-JPEG

Video Bit Rate

32Kbps~16Mbps

Audio Compression

G.711A/G.711U/ADPCM_D/AAC_LC

Audio  Sampling Rate

8kHz/32kHz/48kHz


Max. Resolution

2560×1440@30fps

Main Stream

PAL:25fps(2560×1440,2304×1296,1920×1080,1280×720)
NTSC:30fps(2560×1440,2304×1296,1920×1080,1280×720)

Sub Stream

PAL:25fps(704×576,704×288,352×288,640×360)
NTSC:30fps(704X480,704X240,352X240,640×360)

Third Stream

PAL:25fps(704×576,704×288,352×288,640×480)
NTSC:30fps(704X480,704X240,352X240,640×480)

BLC

Yes

HLC

Yes

AGC

Yes

Noise Reduction

2D/3D

White Balance

Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium   lamp/Incandescent lamp/
Locked white balance

ROI

7 Dynamic Areas for Both Main   and Sub Stream, support 1 auto-tracking ROI

EIS

Eyes-only in monitoring mode

OSD

16×16, 24×24,32×32, 48×48, 64×64,96×96, adaptable size, Letters such as Week, Date, Time, Total 5   Regions

Defog

Digital

Flip

Yes

Regional Exposure

Yes

Regional Focus

Yes

Demist

Yes

Feature

Alarm Trigger

Motion Detection; Mask Alarm; Voltage Alarm; Disk Full;Disk R/W Error; IP   Address Conflict;
MAC Address Conflict Server Exception ;Event Input, Event Output

Linkage Method

send email; trigger   sound;trigger recording;trigger capture;notify surveillance center

Video Analytics

Human/Vehicle Classification;Tripwire;Double   Tripwire;Perimeter;Object    Abandon;Object Lost;Heatmap;Loitering;Running;Parking;People Counting;Crowed;Safety Helmet   Detection;
On Duty Detection;Video Abnormal;Audio Abnormal

Early Warning (EW)

N/A

Auto-Tracking

Yes

Face Mode

Face Capture

Face Capture Performance

Detects up to 32 faces at the same scene

Network

ANR

Auto store video in SD card when NVR disconnected, and upload video to   NVR when resumed connection (Only Support Sorena ANR NVR)

Protocols

HTTP; HTTPS;TCP/IP;UDP; UPnP; SNMP; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; SSL; 802.1X; QoS; IPv4;IPv6; PPPOE; SSH; Unicast; Multicast; RTP;SRTP;RTSP;FTP;SFTP;NAS

System Compatibility

ONVIF Profile S/T/G/M; CGI; Milestone; RTMP

Remote Connection

≤7

User/Host

Up to 32 users. 4 user levels

Client

Easy7 Smart Client

Mobile Client

EasyLive Plus

Web

IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+

Interface

Communication Interface

1 RJ45 10M/100M self adaptive Ethernet port

Audio I/O

1/1

Alarm I/O

1/1

Built-In Speaker

N/A

Reset Button

Yes

On-board storage

Built-in Micro SD card slot, up   to 512 GB

RS-485

N/A

BNC

N/A

Wiper

N/A

Electronic Compass

N/A

GPS/BDS

N/A

General

Operating Temperature

-4070(IR   OFF)   -4040(IR ON)

Operating Humidity

0-95%

Storage Temperature

-4070

Storage Humidity

0-95%(non-condensing)

Power Supply

DC12V±10%/POE+(IEEE802.3 at)

Power Consumption

14W(IR OFF), 24W(IR ON)

Protection

IP66 , TVS 6000V lightning   protection, surge protection and voltage transient protection

Heater

N/A

Material

ADC 12

Boundary Dimensions

222(D)372(H)mm

Package Dimensions

320(L)320(W)520(H)mm

Gross Weight

7.8Kg

Net Weight

5.3Kg
