Key feature |
|
|
·Metal Housing·Up to 1920×1080@30fps·S+265/H.265/H.264/M-JPEG·Min. illumination Color: 0.002Lux@F1.6·Smart IR, IR Range: 30m·Support tripwire and perimeter·Support Face Capture Mode |
·Support Human/Vehicle Classification·Built-in Mic, support max 512G Micro SD Card·Audio I/O 1/1, Alarm I/O 1/1·Operating Conditions -40℃~65℃, 0~95% RH·DC12V,POE·IP66 |
|
Camera |
||
Image Sensor |
1/2.8″CMOS |
|
Min. Illumination |
Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR |
|
Shutter Time |
1s-1/100000s |
|
Day & Night |
IR-cut filter with auto switch (ICR) |
|
WDR |
120dB |
|
S/N |
>42dB |
|
Angle Adjustment |
0-340°;0-75°;0-360° |
|
Lens |
||
Lens Type |
Fixed |
|
Focal Length |
2.8mm |
|
Lens Mount |
M12 |
|
Aperture Range |
F1.6,Fixed |
|
Field of View |
101.7°(H);57.4°(V);116.8°(D) |
|
DORI Distance |
Detect:38.5m Observe:15m Recognize:7.5m Identify:3.5m |
|
Illuminator |
||
IR LEDs |
2 |
|
IR Distance |
30m |
|
Wavelength |
850nm |
|
White LEDs |
N/A |
|
Whitelight Distance |
N/A |
|
Compression Standard |
||
Video Compression |
S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG |
|
Video Bit Rate |
32k-8Mbps |
|
Audio Compression |
G.711A/G.711U/ADPCM_D/AAC_LC |
|
Audio Sampling Rate |
8kHz/32kHz/48kHz |
|
Image |
||
Max. Resolution |
1920×1080@30fps |
|
Main Stream |
PAL:25fps(1920×1080,1280×720,640×480,704×576)
|
|
Sub Stream |
PAL:25fps(704×576,704×288,352×288,640×360)
|
|
Third Stream |
PAL:25fps(704×576,704×288,352×288)
|
|
BLC |
Yes |
|
HLC |
Yes |
|
AGC |
Yes |
|
3D DNR |
Yes |
|
White Balance |
Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance |
|
ROI |
8 regions |
|
Corridor mode |
Yes |
|
EIS |
N/A |
|
OSD |
5regions;16*16/32*32/48*48/64*64 |
|
Picture Overlay |
1 region |
|
Privacy Mask |
4 regions |
|
Defog |
Yes |
|
Feature |
||
Alarm Trigger |
Motion Detection;Mask Alarm;Voltage Alarm;Disk Full;Disk R/W Error;IP Address Conflict;MAC Address Conflict;FTP Server Exception ;Event Input, Event Output |
|
Video Analytics |
Human/Vehicle Classification;Tripwire;Perimeter;Video Abnormal;Audio Abnormal |
|
Rules of behavior analyse in 1 scene |
8 |
|
Early Warning (EW) |
N/A |
|
Face Mode |
Face Capture |
|
Face Detection Performance |
Detects up to 8 faces at the same scene |
|
Linkage Method |
send email;trigger sound;trigger recording;trigger capture;notify surveillance center |
|
Alarm Trigger |
Motion Detection;Mask Alarm;Voltage Alarm;Disk Full;Disk R/W Error;IP Address Conflict;MAC Address Conflict;FTP Server Exception ;Event Input, Event Output |
|
Network |
||
ANR |
ANR |
|
Protocols |
HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;IGMP;SNMP;DHCP;DNS;DDNS;EasyDDNS;NTP;
|
|
System Compatibility |
ONVIF Profile S/T/G/M; CGI; Millstone; RTMP |
|
Remote Connection |
≤2 |
|
Client |
Easy7 Smart Client |
|
Moblie Client |
EasyLive Plus |
|
Web |
IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+ |
|
Interface |
||
Communication Interface |
1 RJ45 10M/ 100M self adaptive Ethernet port |
|
Audio I/O |
1channel in;1channel out |
|
Alarm I/O |
1channel in,3mA,3.3VDC;1channel out,30mA,12VDC |
|
Built-In Mic |
Yes |
|
Built-In Speaker |
N/A |
|
Reset Button |
|
|
On-board storage |
Built-in Micro SD card slot, up to 512 GB |
|
Additional interfaces |
N/A |
|
General |
||
Operating Temperature |
-40℃-65℃ |
|
Operating Humidity |
0-95%(non-condensing) |
|
Storage Temperature |
-40℃-65℃ |
|
Storage Humidity |
0-95%(non-condensing) |
|
Power Supply |
DC12V±25%,MAX 6.5W;POE 802.3af,MAX 8W |
|
Protection |
Surge protection 2000V;Lightning proof 6000V;IP66 |
|
Boundary Dimensions |
117(L)117(W)96(H)mm |
|
Package Dimensions |
140(L)140(W)120(H)mm |
|
GrossWeight |
0.7kg |
|
NetWeight |
0.5kg |

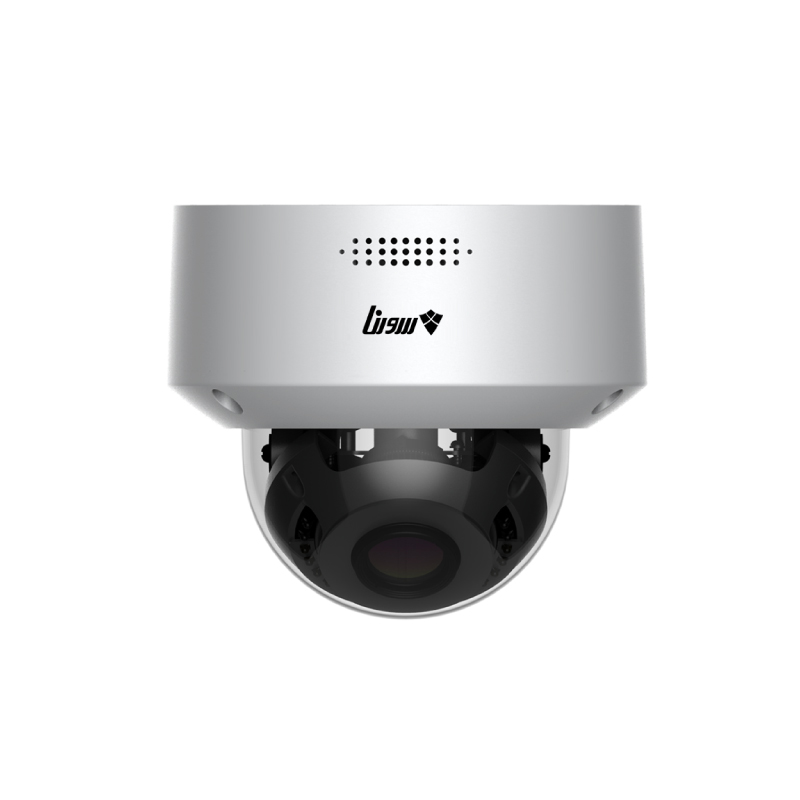

Sorena SR-2458D
دسته بندی: دوربین دام (سری حرفه ای)
