KEY FEACTURE |
|
|||
|
·Supports optical and thermal bi-spectrum image ·Vanadium Oxide Uncooled Focal Plane Arrays ·Thermal Resolution 384×288 ·Optical Resolution up to 3072×1728@30fps ·Min. illumination Color: 0.001Lux@F1.6 ·Optical zoom: 44x, digital zoom 16x ·Smart IR, IR Range: 300m ·Bulit-in Speaker |
·Built-in Automatic Wiper ·Built-in Electronic Compass ·Support GPS/BDS ·S+265/H.265/H.264/M-JPEG ·Intelligent monitoring/Face Capture mode ·Support Human/Vehicle Classification ·Support Laser Point ·Plugin Free ·IP66 |
|
||
Camera |
||||
Thermal Sensor Type |
Vanadium Oxide Uncooled Focal Plane Arrays |
|||
Thermal Length |
50mm |
|||
Resolution |
384×288 |
|||
Piexl Interval |
17μm |
|||
Response Waveband |
8μm~14μm |
|||
NETD |
≤40mK@f/1.0 |
|||
Thermal FOV |
Horizontal: 7.5°,Vertical: 5.6 |
|||
Measurement Distance
|
Detection: 4510m (vehicle),1471m (human)
|
|||
Fire Detection Distance
|
3000m |
|||
Main Stream |
PAL: 25fps (384×288),NTSC: 30fps (384×288) |
|||
Sub Stream |
PAL: 25fps (384×288),NTSC: 30fps (384×288) |
|||
Third Stream |
PAL: 25fps (384×288),NTSC: 30fps (384×288) |
|||
Lens |
||||
Image Sensor |
1/1.8″ CMOS |
|||
Signal System |
PAL/NTSC |
|||
Min. Illumination |
Color: 0.001lux@ (F1.6,AGC ON),B/W: 0lux with IR |
|||
Shutter Time |
1s to 1/100,000s |
|||
Day&Night |
Dual IR Cut Filter with Auto Switch |
|||
Optical Zoom |
44X |
|||
Digital Zoom |
16X |
|||
Pan & Tilt |
||||
Focal Length |
6mm~264mm |
|||
Zoom Speed |
<5s |
|||
Field of View |
Horizontal filed of view: 61.8° (w)~2.3° (t)
|
|||
Aperture Range |
F1.6~F5.3 |
|||
Focus Control |
Auto/Manual |
|||
Iris Control |
Auto |
|||
Close Focus Distance |
1 m–3 m |
|||
DORI Distance |
Detect: 2620m Observe: 1039m Recognize: 524m Identify: 262m |
|||
|
|
||||
Pan Range |
360° |
|||
Pan Speed |
Pan Manual Speed: 0.1°~160°/s,Pan Preset Speed: 200°/s |
|||
Tilt Range |
-21°~90° (Default -13°~90°) |
|||
Tilt Speed |
Tilt Manual Speed: 0.1°~120°/s,Tilt Preset Speed: 120°/s |
|||
3D Position |
Yes |
|||
Preset |
500 |
|||
Preset Accuracy |
±0.1° |
|||
Cruise |
16,up to 32 presets per cruise |
|||
Scan |
8 |
|||
Pattern |
8,each with 600s memory or 1000 orders |
|||
Scheduled Task |
Preset、Cruise、Scan、Pattern、Alarm output |
|||
Park Action |
Yes |
|||
Power-off Memory |
Yes |
|||
Preset Freezing |
Yes |
|||
Illuminator |
||||
IR LEDs |
11 |
|||
IR Distance |
Up to 300m |
|||
IR Irradiation Angle |
Adjustable by Zoom |
|||
White LEDs |
2,support white/blue/red light flash |
|||
Laser |
N/A |
|||
Laser Distance |
N/A |
|||
Image |
||||
Video Compression |
S+265/H.265/H.264/M-JPEG |
|||
Video Bit Rate |
32Kbps~16Mbps |
|||
Audio Compression |
G.711A/G.711U/ADPCM_D/AAC_LC |
|||
Audio Sampling Rate |
8kHz/32kHz/48kHz |
|||
|
|
||||
Max. Resolution |
5.0MP (3072×1728) |
|||
Main Stream |
PAL: 25fps (3072×1728),50fps (2560×1440,2304×1296,1920×1080,1280×720)
|
|||
Sub Stream |
PAL: 25fps (704×576,704×288,640×360,352×288)
|
|||
Third Stream |
PAL: 25fps (1920×1080,1280×720,704×576,640×480,704×288,352×288)
|
|||
BLC |
Yes |
|||
HLC |
Yes |
|||
WDR |
120dB |
|||
Image Stabilization |
EIS |
|||
Defog |
Digital |
|||
White Balance |
Yes |
|||
AGC |
Yes |
|||
Noise Reduction |
2D/3D |
|||
ROI |
7 Dynamic Areas for Both Main and Sub Stream, support 1 auto-tracking ROI |
|||
Picture Overlay |
Yes |
|||
Privacy Mask |
Yes |
|||
Demist |
Yes |
|||
Image Setting |
Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
|||
Flip |
Yes |
|||
OSD |
16×16,24×24,32×32,48×48,64×64,96×96,128×128, adaptable size, Letters such as Week, Date, Time, Total 5 Regions |
|||
Feature |
||||
Alarm Trigger |
Event Input,Event Output,Mask Alarm,Disk Full,Disk R/W Error,IP Address Conflict,MAC Address Conflict,FTP Server Exception |
|||
Video Analytics |
Tripwire,Double Tripwire,Perimeter,Object Abandon,Object Lost,Loitering,Running,Parking,Heatmap,crowed,People Counting,On Duty Detection,Video Abnormal,Audio Abnormal,Human/Vehicle Classification |
|||
Face Mode |
Face capture |
|||
Face Detection Performance |
Detects up to 16 faces at the same scene |
|||
Early Warning(EW) |
Yes |
|||
Auto-Tracking |
Yes |
|||
Face Detection and Analytics |
|
|||
Protocols |
HTTP;HTTPS;TCP/IP;UDP;UPnP;SNMP;DHCP;DNS;DDNS;EasyDDNS;NTP;SMTP;SSL;QoS;IPv4;IPv6;PPPOE;Unicast;Multicast;RTSP;FTP; |
|||
System Compatibility |
ONVIF (PROFILE S/T/G),SDK,CGI,P2P |
|||
ANR |
Auto store video in SD card when NVR disconnected,and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) |
|||
Remote Connection |
≤7 |
|||
User/Host |
Up to 32 users. 4 user levels |
|||
Web |
IE,Firefox,Edge,Safari,Chrome |
|||
Interface |
||||
Communication Interface |
2 RJ45 100M/1000M self adaptive Ethernet ports |
|||
Audio I/O |
1/1 |
|||
Alarm I/O |
8/2 |
|||
Built-In Speaker |
Yes |
|||
Reset Button |
Yes |
|||
On-board storage |
Built-in Micro SD card slot,up to 256 GB |
|||
RS-485 |
Yes |
|||
BNC |
Yes(Debugging use) |
|||
Wiper |
Yes(Auto Wiper) |
|||
Electronic Compass |
Yes |
|||
GPS/BDS |
Yes |
|||
General |
||||
Protection |
IP66 ,TVS 6000V lightning protection,surge protection and voltage transient protection |
|||
Operating Conditions |
-40°C~70°C (IR OFF), -40°C~40°C (IR ON),0-95%RH |
|||
Power Supply |
AC24V±25% |
|||
Power Consumption |
30W(IR OFF),67W(IR ON) |
|||
Heater |
Yes |
|||
Material |
ADC 12 |
|||
Package/Boundary Dimensions |
Φ445x700mm (Φ308x506mm) |
|||
Gross/Net Weight |
21kg (11.6kg) |
|||
Protection |
IP66 ,TVS 6000V lightning protection,surge protection and voltage transient protection |
|||
Web Client Language |
16 languages
|
|||
Operating Conditions |
-40°C~70°C (IR OFF), -40°C~40°C (IR ON),0-95%RH |
|||

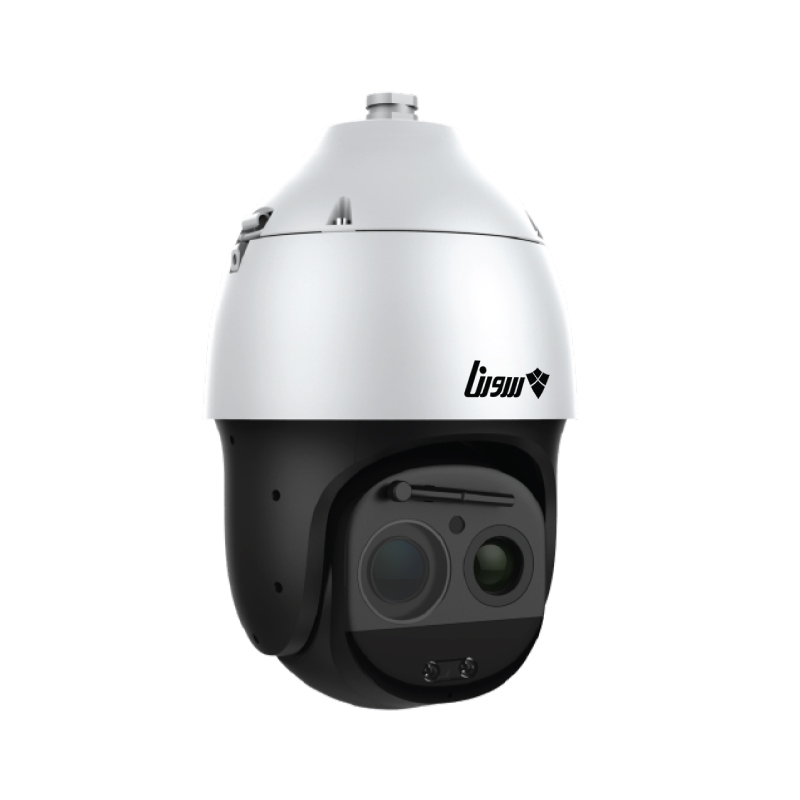

Sorena SR-5044P-T
