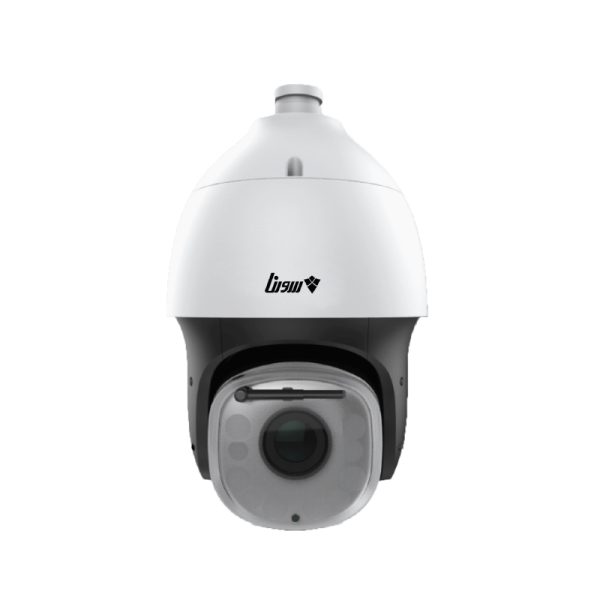

Sorena SR-5044P

توضیحات

KEY FEACTURE

·Auto-Tracking Early Warning (AEW)

·Up to 3072×1728@20fps

·Min. illumination Color: 0.0008Lux@F1.5

·Optical zoom: 44×, digital zoom 16×

·Built-in Speaker

·Support Human/Vehicle Classification

·Face Capture/ intelligent monitoring mode

·Smart IR, IR Range: 250m

·S+265/H.265/H.264/M-JPEG

·IP66

Camera

Image Sensor

1/1.8″ CMOS

Signal System

PAL/NTSC

Min. Illumination

Color: 0.0008lux@ (F1.6, AGC ON)

Shutter Time

1s to 1/100,000s

Day & Night

IR Cut Filter with Auto Switch

WDR

120dB, only in monitoring mode

Lens

Focal Length

6mm~264mm

Optical Zoom

44X

Digital Zoom

16X

Zoom Speed

<5s

Aperture Range

F1.6~F5.3

Field of View

Horizontal filed of   view: 61.8°   (w)~2.3° (t

  Vertical filed of view:36.3° (w)~1.3° (t)

Focus Control

Auto/Manual

Iris Control

Auto

Close Focus Distance

1 m–3 m

Pan & Tilt

Pan Range

360°

Pan Speed

Pan Manual Speed: 0.1°~180°/s,   Pan Preset Speed: 240°/s

Tilt Range

-16°~90° (Default -3°~90°)

Tilt Speed

Tilt Manual Speed: 0.1°~120°/s,   Tilt Preset Speed: 180°/s

3D Position

Yes

Preset

500

Cruise

16, up to 32 presets per cruise

Scan

8

Pattern

8, each with 600s memory or 1000 orders

Scheduled Task

Preset,Cruise,Scan,Pattern

North Point

Yes

Power-off Memory

Yes

Preset  Freezing

Yes

Illuminator

IR LEDs

8

IR Distance

Up to 180m

Wavelength

850nm

IR Irradiation Angle

Adjustable by Zoom

White LEDs

2, support white/blue/red light flash

Whitelight Distance

30m

Laser

N/A

Laser Distance

N/A

Compression Standard

Video Compression

S+265/H.265/H.264/M-JPEG

Video Bit Rate

32Kbps~16Mbps

Audio Compression

G.711A/G.711U/ADPCM_D/AAC_LC

Audio  Sampling Rate

8kHz/32kHz/48kHz


Max. Resolution

5MP ( 3072×1728)

Main Stream

PAL: 20fps (3072×1728), 25fps   (2560×1440, 2304×1296), 50fps (1920×1080, 1280×960, 1280×720)
NTSC: 20fps (3072×1728), 30fps (2560×1440, 2304×1296), 60fps (1920×1080,   1280×960, 1280×720)

Sub Stream

PAL: 25fps   (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)

Third Stream

PAL: 25fps (704×576, 704×288,   352×288)
NTSC: 30fps (704×480, 704×240, 352×240)

BLC

Yes

HLC

Yes

AGC

Yes

Noise Reduction

2D/3D

White Balance

Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium   lamp/Incandescent lamp/
Locked white balance

ROI

7 Dynamic Areas for Both Main   and Sub Stream, support 1 auto-tracking ROI

EIS

N/A

OSD

16×16, 24×24,32×32, 48×48, 64×64,96×96, adaptable size, Letters such as Week, Date, Time, Total 5   Regions

Defog

Digital

Flip

Yes

Regional Exposure

Yes

Regional Focus

Yes

Demist

Yes

Feature

Alarm Trigger

Harsh Voice Alarm, Motion Detection, Mask Alarm, Network Disable Alarm,   IP Conflict, MAC Conflict Detection

Video Analytics

Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running,   Parking, Heatmap, crowed, People Counting, On Duty Detection, Safety Helmet   Detection, Video Abnormal, Audio Abnormal, Face Capture, Human/Vehicle   Classification

Early Warning (EW)

Yes

Auto-Tracking

Yes

Face Mode

Face capture, Intelligent monitoring   optional, default Intelligent monitoring

Face Capture Performance

Detects up to 16 faces at the same scene

Network



ANR

Auto store video in SD card when NVR disconnected, and upload video to   NVR when resumed connection(Only Support Sorena ANR NVR)

Protocols

TCP/HTTP/MULTICAST/UPnP/PPPoE/DDNS/SIP/FTP/NTP/RTSP/   RTMP/SNMP/SMTP/802.1X/QoS/HTTPS/IPV4

System Compatibility

ONVIF Profile S/T/G/M; CGI; Milestone; RTMP

Remote Connection

≤7

User/Host

Up to 32 users. 4 user levels

Client



Mobile Client



Web

IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Interface

Communication Interface

1 RJ45 10M/100M self adaptive Ethernet port

Audio I/O

1/1

Alarm I/O

8/2

Built-In Speaker

Yes

Reset Button

Yes

On-board storage

Built-in Micro SD card slot, up   to 128 GB

RS-485

Yes

BNC

Yes(Debugging use)

Wiper

Yes

Electronic Compass

N/A

GPS/BDS

N/A

General

Operating Temperature

-30°C~70°C (IR   OFF),  -30°C~40°C (IR ON), 0-95%RH

Power Supply

AC24V±15%

Power Consumption

22W (IR OFF), 43W (IR ON)

Protection

IP66 , TVS 6000V lightning   protection, surge protection and voltage transient protection

Heater

N/A

Material

ADC12

Boundary Dimensions

222(D)372(H)mm

Package Dimensions

320(L)320(W)520(H)mm

GrossWeight

9.0kg (5.5kg)
