KEY FEACTURE |
||
·Metal Housing·256 × 192 resolution, 12 μm, Vox·Temperature exception alarm for fire prevention·-15℃ to 550°C ,Max. (± 2°C, ± 2%)·Max resolution 2880×1620·Smart IR,IR Range:50m |
·Built-In Mic,Built-In Speaker·Support tripwire and perimeter·Operating Conditions -40℃~65℃,0~95% RH·DC12V,POE·IP67 |
|
Camera |
||
Image Sensor |
1/2.7″CMOS |
|
Min. Illumination |
Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR |
|
Shutter Time |
1s-1/100000s |
|
Day & Night |
IR-cut filter with auto switch (ICR) |
|
WDR |
120dB |
|
S/N |
>39dB |
|
Angle Adjustment |
0-360°;0-90°;0-360° |
|
Lens |
||
Lens Type |
Fixed |
|
Focal Length |
Thermal:7mm;Optical:6mm |
|
Lens Mount |
M12 |
|
Aperture Range |
Thermal:F1.2;Optical:F1.6;Fixed |
|
Field of View |
Thermal:26°;Optical:53.8°(H);Thermal:20°;Optical:29.3°(V);Thermal:32.8°;Optical:61.3°(D) |
|
DORI Distance |
Detect:120m Observe:47.6m Recognize:24m Identify:12m |
|
Illuminator |
||
IR LEDs |
2 |
|
IR Distance |
50m |
|
Wavelength |
850nm |
|
White LEDs |
2 |
|
White light Distance |
15m |
|
Compression Standard |
||
Video Compression |
S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG |
|
Video Bit Rate |
32k-16Mbps |
|
Audio Compression |
G.711A/G.711U/ADPCM_D/AAC_LC |
|
Audio Sampling Rate |
8kHz/32kHz/48kHz |
|
Image |
||
Max. Resolution |
Optical:
|
|
Main Stream |
Optical:
|
|
Sub Stream |
Optical:
|
|
Third Stream |
N/A |
|
BLC |
Yes |
|
HLC |
Yes |
|
AGC |
Yes |
|
3D DNR |
Yes |
|
White Balance |
Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance |
|
ROI |
8 regions |
|
Corridor mode |
N/A |
|
EIS |
N/A |
|
OSD |
5regions;16*16/32*32/48*48/64*64/96*96 |
|
Picture Overlay |
1 region |
|
Privacy Mask |
4 regions |
|
Defog |
Yes |
|
Feature |
||
Alarm Trigger |
Motion Detection; Mask Alarm; Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception ; Event Input, Event Output |
|
Linkage Method |
send email; trigger sound; trigger warmlight; trigger recording; trigger
|
|
Video Analytics |
Human/Vehicle Classification; Tripwire; Double Tripwire; Perimeter; Video Abnormal; Audio Abnormal |
|
Rules of behavior analyse in 1 scene |
8 |
|
Early Warning(EW) |
N/A |
|
Auto-Tracking |
N/A |
|
Face Mode |
N/A |
|
Face Detection Performance |
N/A |
|
Network |
||
ANR |
ANR |
|
Protocols |
HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;IGMP;SNMP;DHCP;DNS;DDNS;Easy DDNS; NTP; SMTP; SSL;802.1X;QoS;IPv4;IPv6;PPPOE;SSH;Unicast;Multicast;RTCP;ARP;SRTP;RTSP;FTP;SFTP;NAS |
|
System Compatibility |
onvif Profile S/T/G/M;CGI;MIL STONE;RTMP |
|
Remote Connection |
≤2 |
|
Client |
Easy7 Smart Client |
|
Moblie Client |
EasyLive Plus |
|
Web |
IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+ |
|
Interface |
||
Communication Interface |
1 RJ45 10M/ 100M self adaptive Ethernet port |
|
Audio I/O |
1channel in;1channel out |
|
Alarm I/O |
2channel in,3mA,3.3VDC;1channel out,1A,24VDC |
|
Built-In Mic |
Yes |
|
Built-In Speaker |
Yes |
|
Reset Button |
Yes |
|
On-board storage |
Built-in Micro SD card slot, up to 512 GB |
|
Additional interfaces |
1 channel RS-485 |
|
General |
||
Operating Temperature |
-40℃-65℃ |
|
Operating Humidity |
0-95% |
|
Storage Temperature |
-40℃-65℃ |
|
Storage Humidity |
0-95%(non-condensing) |
|
Power Supply |
DC12V±25%,MAX 7W;POE 802.3af,MAX 8W |
|
Protection |
Surge protection 2000V;Lightning proof 6000V;IP67 |
|
Boundary Dimensions |
327(L)114(W)105(H)mm |
|
Package Dimensions |
360(L)150(W)170(H)mm |
|
GrossWeight |
1.8kg |
|
NetWeight |
1.5kg |
|

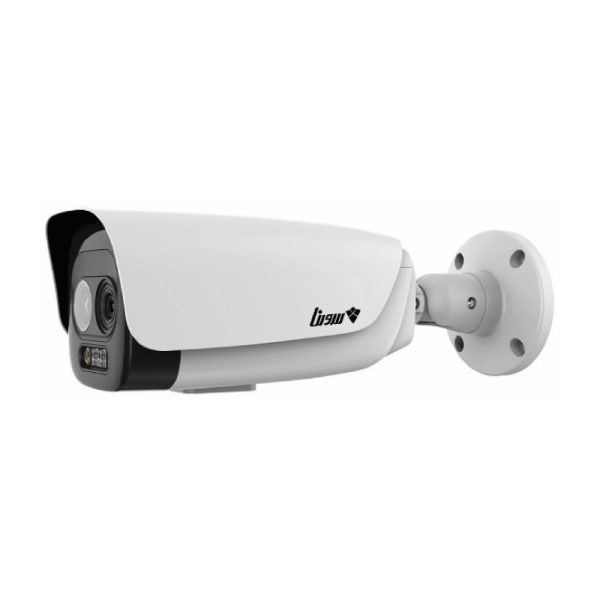

Sorena SR-5450C-T(6mm)
دسته بندی: دوربین حرارتی (Thermal)
