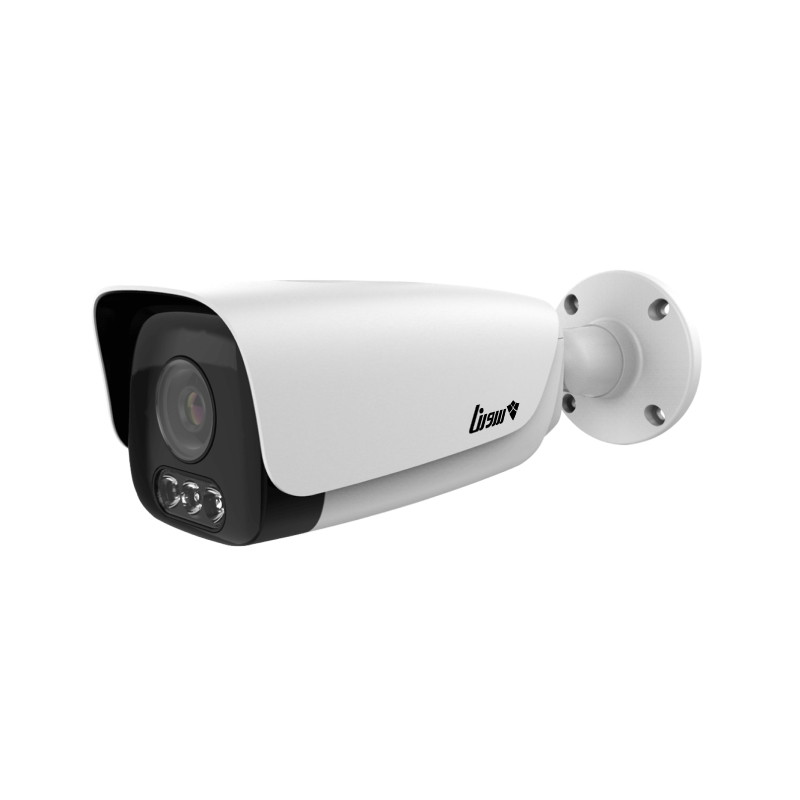

Sorena SR-5458C-LP

مستندات محصول

دیتاشیت

توضیحات

KEY FEACTURE

·Metal Housing

·Motorized Lens 2.7-13.5mm

·Up to 3072×1728@30fps, 1920×1080@60fps

·S+265/H.265/H.264/M-JPEG

·Min. illumination Color: 0.0004Lux@F1.3

·Smart IR, IR Range: 80m

·Built in Mic&Speaker

·Support Human/Vehicle Classification

·Support Face Capture

·Support Early warning

·Operating Conditions -35°~65°, 0~95% RH

·DC12V,POE

·IP67

Camera

Image Sensor

1/1.8″CMOS

Min. Illumination

Color:0.0004Lux@(F1.3,AGC ON),B/W:0Lux with IR

Shutter Time

1s-1/100000s

Day&Night

IR-cut filter with auto switch (ICR)

WDR

120dB

S/N

>43dB

Angle Adjustment

0-360°;0-90°;0-360°

Lens

Lens Type

Motorized

Focal Length

2.7-13.5mm

Lens Mount

Ф16

Aperture Range

F1.3,DC-iris

Field of View

106.9°-48.7°(H);57.2°-27.4°(V);121.2°-55.9°(D)

DORI Distance

Detect:37m-160m
Observe:14.5m-63.5m
Recognize:7.5m-32m
Identify:3.5m-16m

Illuminator

IR LEDs

4

IR Distance

80m

Wavelength

850nm

White LEDs

3

Whitelight Distance

15m

Compression Standard

Video Compression

S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG

Video Bit Rate

32k-16Mbps

Audio Compression

G.711A/G.711U/ADPCM_D/AAC_LC

Audio  Sampling Rate

8kHz/32kHz/48kHz


Max. Resolution

3072×1728@30fps

Main Stream

PAL:25fps(3072×1728,2560×1440,2304×1296)
50fps(1920×1080,1280×720)
NTSC:30fps(3072×1728,2560×1440,2304×1296)
60fps(1920×1080,1280×720)

Sub Stream

PAL:25fps(704×576,704×288,352×288,640×360)
NTSC:30fps(704×480,704×240,352×240,640×360)

Third Stream

PAL:25fps(1920×1080,1280×720,704X576,704X288,352X288)
NTSC:30fps(1920×1080,1280×720,704X480,704X240,352X240)

BLC

Yes

HLC

Yes

AGC

Yes

3D DNR

Yes

White Balance

Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance

ROI

8 regions

Corridor mode

Yes

EIS

N/A

OSD

5regions;16*16/32*32/48*48/64*64/96*96

Picture Overlay

1 region

Privacy Mask

4 regions

Defog

Yes

Feature

Alarm Trigger

Motion   Detection;Mask Alarm;Voltage Alarm;Disk Full;Disk R/W Error;IP Address Conflict;MAC Address Conflict;FTP Server Exception ;Event Input,

Event Output

Video Analytics

Human/Vehicle   Classification;Tripwire;Double Tripwire;Perimeter;Object  Abandon;Object   Lost;Heatmap;Loitering;Running;Parking;People Counting;

Crowed;Safety Helmet Detection;On Duty Detection;Video Abnormal;Audio Abnormal

Rules of behavior   analyse in 1 scene

8

Early Warning(EW)

Early Warning(EW)

Face Mode

Face Capture

Face Detection   Performance

Detects up to 32   faces at the same scene

Linkage Method

send email;trigger sound;trigger warmlight;trigger recording;trigger capture;notify surveillance center

Network

ANR

ANR

Protocols

HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;IGMP;SNMP;DHCP;DNS;DDNS;EasyDDNS;NTP;
SMTP;SSL;802.1X;QoS;IPv4;IPv6;PPPOE;Unicast;Multicast;RTCP;ARP;RTP;SRTP;RTSP;
FTP;SFTP;NAS

System   Compatibility

ONVIF Profile   S/T/G/M;CGI;Milstone;RTMP

Remote Connection

≤2

Client

Easy7 Smart Client

Moblie Client

EasyLive Plus

Web

IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+

Interface

Communication   Interface

1 RJ45 10M/ 100M   self adaptive Ethernet port

Audio I/O

1channel   in;1channel out

Alarm I/O

2channel   in,3mA,3.3VDC;1channel out,1A,24VDC

Built-In Mic

Yes

Built-In Speaker

Yes

Reset Button

Yes

On-board storage

Built-in Micro SD   card slot, up to 512 GB

Additional   interfaces

RS-485

General

Operating   Temperature

-35-65

Operating Humidity

0-95%(non-condensing)

Storage Temperature

-35-65

Storage Humidity

0-95%(non-condensing)

Power Supply

DC12V±25%,MAX 14W;POE   802.3at,MAX 15.5W

Protection

Surge protection   2000V;Lightning proof 6000V;IP67

Boundary Dimensions

327(L)114(W)105(H)mm

Package Dimensions

360(L)150(W)170(H)mm

GrossWeight

1.83kg

NetWeight

1.48kg
