KEY FEATURES |
|
|
|
·Metal housing ·S+265/H.265/H.264B/H.264M/H.264H ·Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR ·IR Range 80m ·Built-in Mic |
·Support microSD/microSDHC/microSDXC card, up to 512 GB ·Support Smart surveillance ·Operating Conditions -35℃~65℃(No turning on the light), Humidity 95% or less (no condensation) ·DC12V±25%,MAX 8W, POE 802.3af,MAX 9W ·IP67 |
|
|
Camera |
||
|
Image Sensor |
1/2.8″CMOS |
|
|
Min. Illumination |
Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR |
|
|
Shutter Time |
1s~1/100000s |
|
|
Day&Night |
IR-cut filter with auto switch (ICR) |
|
|
WDR |
120dB |
|
|
S/N |
>42dB |
|
|
Angle Adjustment |
0~360°(P); 0~90°(T); 0~360°(R) |
|
|
Lens |
||
|
Lens Type |
Motorized |
|
|
Focal Length |
2.7~13.5mm |
|
|
Lens Mount |
Φ14 |
|
|
Aperture Range |
F1.6 |
|
|
Field of View |
96.2°~29.2°(H); 70.3°~22°(V); 119.1°~36.6°(D) |
|
|
DORI Distance |
W: Detect:54.0m Observe:21.4m Recognize:10.8m Identify:5.4m T: Detect:270.0m Observe:107.1m Recognize:54.0m Identify:27.0m |
|
|
Illuminator |
||
|
IR LEDs |
4 |
|
|
IR Distance |
80m |
|
|
Wavelength |
850nm |
|
|
Compression Standard |
||
|
Video Compression |
S+265/H.265/H.264B/H.264M/H.264H |
|
|
Video Bit Rate |
32k~6Mbps |
|
|
Audio Compression |
G.711A/G.711U/ADPCM_D |
|
|
Audio Sampling Rate |
8kHz/32kHz/48kHz |
|
|
Image |
||
|
Max. Resolution |
2592×1944@20fps |
|
|
Main Stream |
PAL:20fps(2592×1944), 25fps(2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:20fps(2592×1944), 24fps(, 2592×1520, 2560×1440), 30fps(2304×1296, 1920×1080, 1280×720) |
|
|
Sub Stream |
PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
|
|
BLC |
Yes |
|
|
HLC |
Yes |
|
|
AGC |
Yes |
|
|
3D DNR |
Yes |
|
|
White Balance |
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
|
|
|
|
|
|
ROI |
8 rectangular static areas |
|
|
OSD |
Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48/64*64 |
|
|
Privacy Mask |
4 black static areas |
|
|
Defog |
Yes |
|
|
Max. Resolution |
2592×1944@20fps |
|
|
Main Stream |
PAL:20fps(2592×1944), 25fps(2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:20fps(2592×1944), 24fps(, 2592×1520, 2560×1440), 30fps(2304×1296, 1920×1080, 1280×720) |
|
|
Sub Stream |
PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
|
|
BLC |
Yes |
|
|
Feature |
||
|
Alarm Trigger |
Motion Detection; Mask Alarm; Disk Full; Disk R/W Error; IP Address Conflict; Event Input, Event Output |
|
|
Linkage Method |
trigger recording; trigger capture; notify surveillance center |
|
|
Video Analytics |
Tripwire; Perimeter |
|
|
Rules of behavior analyse in 1 scene |
2 |
|
|
Network |
||
|
ANR |
Yes |
|
|
Protocols |
HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; QoS; IPv4; SSH; Unicast; RTSP; FTP |
|
|
System Compatibility |
P2P(Mutually exclusive with Profile G); ONVIF Profile S/T/G; CGI; Milestone |
|
|
Remote Connection |
≤2 |
|
|
Client |
Easy7 Smart Client |
|
|
Moblie Client |
EasyLive Plus |
|
|
Interface |
||
|
Communication Interface |
1*RJ-45,10/100 Mbps self-adaptive Ethernet port |
|
|
Audio I/O |
1; 1 |
|
|
Alarm I/O |
1-ch,TTL input,3mA,3.3VDC; 1-ch,TTL output,30mA,12VDC |
|
|
Reset Button |
Yes |
|
|
On-board storage |
Support microSD/microSDHC/microSDXC card, up to 512 GB |
|
|
RTC |
Yes |
|
|
General |
||
|
Operating Temperature |
-35℃~65℃(No turning on the light) |
|
|
Operating Humidity |
Humidity 95% or less (no condensation) |
|
|
Storage Temperature |
-35℃~65℃ |
|
|
Storage Humidity |
Humidity 95% or less (no condensation) |
|
|
Power Supply |
DC12V±25%,MAX 8W; POE 802.3af,MAX 9W |
|
|
Protection |
Surge4000V; ESD6000V; IP67 |
|
|
Boundary Dimensions |
239(L)90(W)90(H)mm |
|
|
Package Dimensions |
280(L)125(W)140(H)mm |
|
|
GrossWeight |
1.28kg |
|
|
Operating Temperature |
-35℃~65℃(No turning on the light) |
|

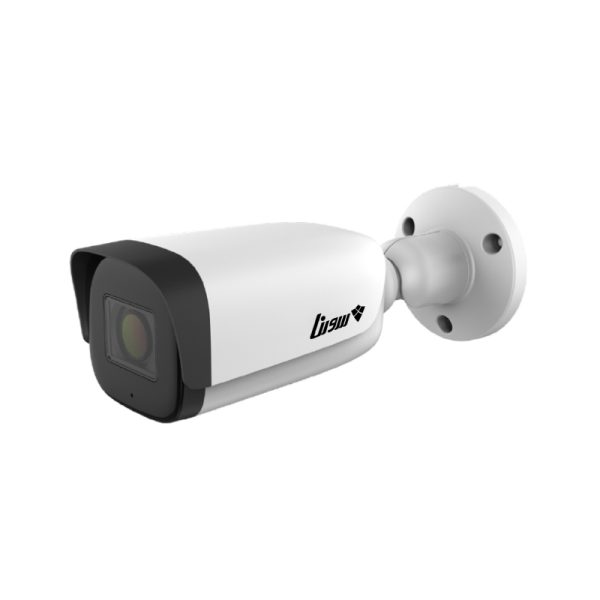

Sorena SR-5458C
دسته بندی: دوربین بولت (سری حرفه ای)
