KEY FEACTURE |
||

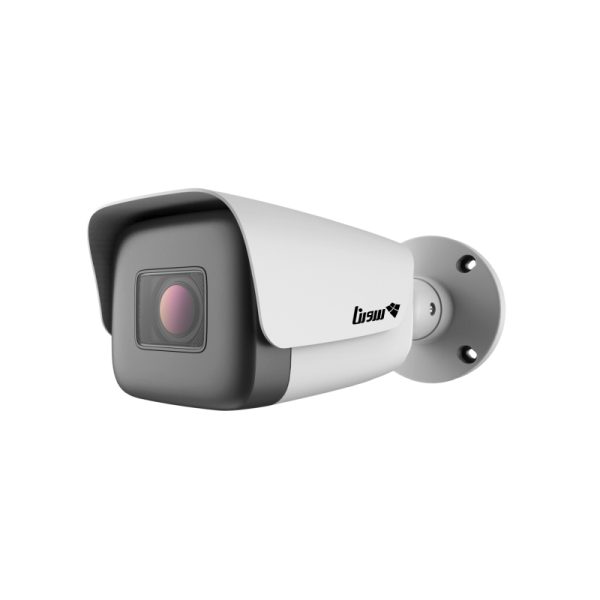

| . Metal Housing
. Motorized Lens 2.7~13.5mm. Up to 2880×1620@30fps, 1920×1080@60fps. S+265/H.265/H.264/M-JPEG . Min-Illumination Color: 0.002Lux@F1.6 . Smart IR, IR Range: 80m |
. Support Human/Vehicle Classification
. Support Face Capture Mode . Built-in Mic, Audio I/O 1/1, alarm I/O 2/1 . Operation Conditions -35℃~65℃, 0~95%RH . DC12V, POE. IP67 |
|
|
Camera |
||
|
Image Sensor |
1/2.7″CMOS |
|
|
Min. Illumination |
Color:0.002Lux@ (F1.6, AGC ON), B/W:0Lux with IR |
|
|
Shutter Time |
1s-1/100000s |
|
|
Day & Night |
IR-cut filter with auto switch (ICR) |
|
|
WDR |
120dB |
|
|
S/N |
>39dB |
|
|
Angle Adjustment |
0-360°;0-90°;0-360° |
|
|
Lens |
||
| Lens Type | Motorized | |
| Focal Length | 2.7~13.5mm | |
| Lens Mount | Φ14 | |
| Aperture Range | F1.6, Fixed | |
| Field of View | 98.3-32.2°(H);54.9-18.2°(V);112.6°-37°(D) | |
| DORI Distance | Detect:56m-240m Observe:22m-95m Recognize:11m-48m Identify:5.6m-24m | |
|
Illuminator |
||
| IR LEDs | 4 | |
| IR Distance | 80m | |
| Wavelength | 850nm | |
| White LEDs | N/A | |
| White light Distance | N/A | |
|
Compression Standard |
||
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG | |
| Video Bit Rate | 32k-16Mbps | |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC | |
| Audio Sampling Rate | 8kHz/32kHz/48kHz | |
|
Image |
||
| Max. Resolution | 2880×1620@30fps | |
| Main Stream | PAL:25fps(2880×1620,2688×1520,2560×1440,2304×1296) 50fps(1920×1080,1280×720) NTSC:30fps(2880×1620,2688×1520,2560×1440,2304×1296) 60fps(1920×1080,1280×720) | |
| Sub Stream | PAL:25fps(704×576,704×288,352×288,640×360) NTSC:30fps(704×480,704×240,352×240,640×360) | |
| Third Stream | PAL:25fps(1280×720,704×576,640×360,704×288,352×288) NTSC:30fps(1280×720,704×480,640×360,704×240,352×240) | |
| BLC | Yes | |
| HLC | Yes | |
| AGC | Yes | |
| 3D DNR | Yes | |
| White Balance | Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance | |
| ROI | 8 regions | |
| Corridor mode | Yes | |
| EIS | N/A | |
| OSD | 5regions;16*16/32*32/48*48/64*64/96*96 | |
| Picture Overlay | 1 region | |
| Privacy Mask | 4 regions | |
| Defog | Yes | |
|
Feature |
||
| Alarm Trigger | Motion Detection;Mask Alarm;Voltage Alarm;Disk Full;Disk R/W Error;IP Address Conflict;MAC Address Conflict;FTP Server Exception ;Event Input, Event Output | |
| Video Analytics | Human/Vehicle Classification; Tripwire; Perimeter; Video Abnormal; Audio Abnormal | |
| Rules of behavior analyse in 1 scene | 8 | |
| Early Warning (EW) | N/A | |
| Face Mode | Face Capture | |
| Face Detection Performance | Detects up to 32 faces at the same scene | |
| Linkage Method | send email; trigger sound; trigger recording; trigger capture; notify surveillance center | |
|
Network |
||
ANR
|
ANR
|
|
Protocols
|
HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;IGMP;SNMP;DHCP;DNS;DDNS;EasyDDNS;NTP; SMTP;SSL;802.1X;QoS;IPv4;IPv6;PPPOE;Unicast;Multicast;RTCP;ARP;RTP;SRTP;RTSP; FTP;SFTP;NAS
|
|
System Compatibility
|
ONVIF Profile S/T/G/M; CGI; Milstone; RTMP
|
|
Remote Connection
|
≤2
|
|
Client
|
Easy7 Smart Client
|
|
Mobile Client
|
EasyLive Plus
|
|
Web
|
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
|
|
|
Interface |
||
|
Communication Interface |
1 RJ45 10M/ 100M self-adaptive Ethernet port |
|
|
Audio I/O |
1channel in;1channel out |
|
|
Alarm I/O |
2channel in,3mA,3.3VDC;1channel out,30mA,12VDC |
|
|
Built-In Mic |
Yes |
|
|
Built-In Speaker |
N/A |
|
|
Reset Button |
Yes |
|
|
On-board storage |
Built-in Micro SD card slot, up to 512 GB |
|
|
Additional interfaces |
N/A |
|
|
General |
||
|
Operating Temperature |
-35℃-65℃ |
|
|
Operating Humidity |
0-95%(non-condensing) |
|
|
Storage Temperature |
-35℃-65℃ |
|
|
Storage Humidity |
0-95%(non-condensing) |
|
|
Power Supply |
DC12V±25%, MAX 9.5W; POE 802.3af, MAX 10.5W |
|
|
Protection |
Surge protection 2000V; Lightning proof 6000V; IP67 |
|
|
Boundary Dimensions |
265(L)105(W)105(H)mm |
|
|
Package Dimensions |
360(L)150(W)170(H)mm |
|
|
Gross Weight |
1.6kg |
|
|
Net Weight |
1.15kg |
|
