KEY FEACTURE |
||
|
·Metal + Plastic Housing ·Up to 4640×1728@25fps ·1/2.7″ CMOS ·S+265/H.265/H.264 ·Min. illumination Color: 0.0001Lux@F1.0 ·Warm Light |
·Built-in Mic ·Built-in Speaker ·Operating Conditions -40°~65°, 0~95% RH ·Support human/vehicle classification ·Horizontal FOV 180°±10° ·POE |
|
|
Camera |
||
|
Image Sensor |
1/2.7″CMOS |
|
|
Min. Illumination |
Color: 0.0001Lux@F1.0 |
|
|
Shutter Time |
1s-1/100000s |
|
|
Day&Night |
N/A |
|
|
WDR |
120dB |
|
|
S/N |
>42dB |
|
|
Angle Adjustment |
0~360°;0~90°;0~360° |
|
|
Lens |
||
|
Lens Type |
Fixed |
|
|
Focal Length |
2.8mm |
|
|
Lens Mount |
M12 |
|
|
Aperture Range |
F1.0, fixed |
|
|
Field of View |
180°(H)±10°;65°(V)±5°;191°(D)±10° |
|
|
DORI Distance |
Detect: 56m Observe: 22m Recognize: 11m Identify: 5.6m |
|
|
Illuminator |
||
|
IR LEDs |
N/A |
|
|
IR Distance |
N/A |
|
|
Wavelength |
N/A |
|
|
White LEDs |
3 |
|
|
Whitelight Distance |
10m |
|
|
Compression Standard |
||
|
Video Compression |
S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG |
|
|
Video Bit Rate |
32k-16Mbps |
|
|
Audio Compression |
G.711A/G.711U/ADPCM_D/AAC_LC |
|
|
Audio Sampling Rate |
8kHz/32kHz/48kHz |
|
|
Image |
||
|
Max. Resolution |
4640×1728@25fps |
|
|
Main Stream |
PAL: 25fps(4640×1728,4096×1520) |
|
|
Sub Stream |
PAL: 25fps(1408×528) |
|
|
Third Stream |
N/A |
|
|
BLC |
Yes |
|
|
HLC |
Yes |
|
|
AGC |
Yes |
|
|
3D DNR |
Yes |
|
|
White Balance |
Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/ |
|
|
ROI |
8 regions |
|
|
Corridor mode |
N/A |
|
|
EIS |
N/A |
|
|
OSD |
5 regions;16*16/32*32/48*48/64*64/96*96 |
|
|
Picture Overlay |
Yes |
|
|
Privacy Mask |
4 regions |
|
|
Defog |
Yes |
|
|
Feature |
||
|
Alarm Trigger |
Motion Detection;Mask Alarm;Voltage Alarm;Disk Full;Disk R/W Error;IP Address Conflict; MAC Address Conflict; FTP Server Exception ;Event Input, Event Output |
|
|
Video Analytics |
Human/Vehicle Classification;Tripwire;Perimeter |
|
|
Rules of behavior analyse in 1 scene |
8 |
|
|
Early Warning(EW) |
Yes |
|
|
Face Mode |
N/A |
|
|
Face Detection Performance |
N/A |
|
|
Linkage Method |
send email;trigger sound;trigger warmlight;trigger recording;trigger capture; |
|
|
Network |
||
|
ANR |
ANR |
|
|
Protocols |
HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;IGMP;SNMP;DHCP;DNS;DDNS;Easy DDNS; |
|
|
System Compatibility |
ONVIF Profile S/T/G/M;CGI;Milstone;RTMP |
|
|
Remote Connection |
≤2 |
|
|
Client |
Easy7 Smart Client |
|
|
Moblie Client |
EasyLive Plus |
|
|
Web |
IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+ |
|
|
Interface |
||
|
ANR |
ANR |
|
|
Protocols |
HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;IGMP;SNMP;DHCP;DNS;DDNS;Easy DDNS; |
|
|
System Compatibility |
ONVIF Profile S/T/G/M;CGI;Milstone;RTMP |
|
|
Remote Connection |
≤2 |
|
|
Client |
Easy7 Smart Client |
|
|
Moblie Client |
EasyLive Plus |
|
|
Web |
IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+ |
|
|
ANR |
ANR |
|
|
General |
||
|
Operating Temperature |
-40℃-65℃ |
|
|
Operating Humidity |
0-95%(non-condensing) |
|
|
Storage Temperature |
-40℃-65℃ |
|
|
Storage Humidity |
0-95%(non-condensing) |
|
|
Power Supply |
DC12V±25%,MAX 12W;POE 802.3at |
|
|
Protection |
Surge protection 2000V;Lightning proof 6000V;IP67 |
|
|
Boundary Dimensions |
294(L)116(W)72(H)mm |
|
|
Package Dimensions |
360(L)150(W)170(H)mm |
|
|
GrossWeight |
1.25kg |
|
|
NetWeight |
0.85kg |
|

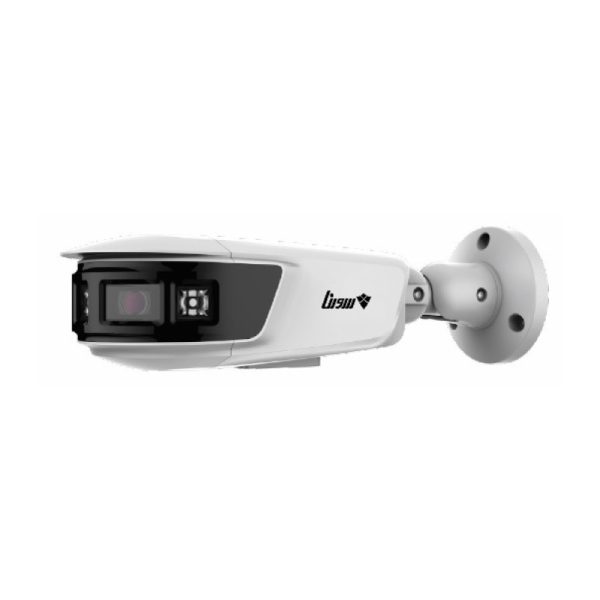

Sorena SR-8450C-PA
دسته بندی: دوربین پانارومیک (Panoramic)
