KEY FEATURES |
|
||
4 Fast RJ45 POE Port 2 Gigabit RJ45 Uplink Port 1 (Female) Fast RJ45 Uplink Port 120 Watt |
5Gb Internal Bandwidth IC+ Processor PoE Distance up to 250m Metal Case |
|
|
interface |
|
||
Total Port |
7 Ports |
|
|
Max POE Output |
120Watt |
|
|
POE Port Control |
808AR |
|
|
Fast RJ45 POE Port |
4 |
|
|
Gigabit RJ45 POE Port |
N/A |
|
|
Fast RJ45 Uplink Port |
N/A |
|
|
Gigabit RJ45 Uplink Port |
2 |
|
|
Gigabit SFP Uplink Port |
N/A |
|
|
Combo Uplink Port |
N/A |
|
|
Power Transmit RJ45 Port |
1 (Female) |
|
|
Network Performance |
|
||
Standard |
IEEE802.3x, IEEE802.3u, IEEE802.3az, IEEE802.3ab, IEEE802.3af, IEEE802.3at |
|
|
Protocols |
CSMA/CD |
|
|
Speed |
Ethernet 10Mbps (half duplex), 20Mbps (full duplex); 10BASE-T: 14,880bps/port Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX:14,8800bps/port Gigabit Ethernet 1000Mbps (half duplex), 2000Mbps (full duplex); 1000BASE-TX: 1488000bps/port |
|
|
Cabling |
10Base-TX: Cat 5 or above (250m) POE=250M 100Base-TX:Cat 6 UTP (120m) POE=150M 1000 Base-TX: Cat 6 UTP or above (100m) |
|
|
Bandwidth |
5Gb Internal Bandwidth |
|
|
MAC Table |
32Kb |
|
|
Auto MDI-MDIX |
Yes All Port |
|
|
Console |
N/A |
|
|
Transfer Pattern |
Store & Forward |
|
|
Hardware |
|
||
Processor Type |
IC+ |
|
|
LED Panel |
POE Activity / Data Activity |
|
|
Main Board |
Double Layer |
|
|
Case |
Metal Case |
|
|
Mounting |
Rackmount / Desktop |
|
|
PD’S |
|
||
IP Camera |
Yes |
|
|
IP Phone |
Yes |
|
|
(+)2/1,(-)6/3 |
Yes |
|
|
General |
|||
IP Rating |
IP51 |
||
Web Language |
N/A |
||
Dimension |
170*110*45 mm |
||
Weight |
520 g |
||
Storage Temp |
-20°C ~ +60°C / 10% ~ 90% RH |
||
Operation Temp |
-15°C ~ +50°C / 10% ~ 90% RH |
||
Radiation Electromagnetic |
EN55016 |
||
Status |
|||
LED |
Ethernet Interfaces 1000 LNK/ACT (Red), 10/100 LNK/ACT (Green) PoE Ethernet Interfaces, PoE-in-Use (af/at) 1000 LNK/ACT (Green), 10/100 LNK/ACT (Green) |
||
Power Supply |
|||
Power |
200~240V AC, 50~60Hz |
||
Redundant |
N/A |
||
LED Power |
Yes |
||
Power Cable |
Available |
||
Guarantee |
|||
Product Guarantee |
3 Year Platinum Guarantee |
||
MTBF |
100K hrs min. MIL-HDBK-217F (25°) |

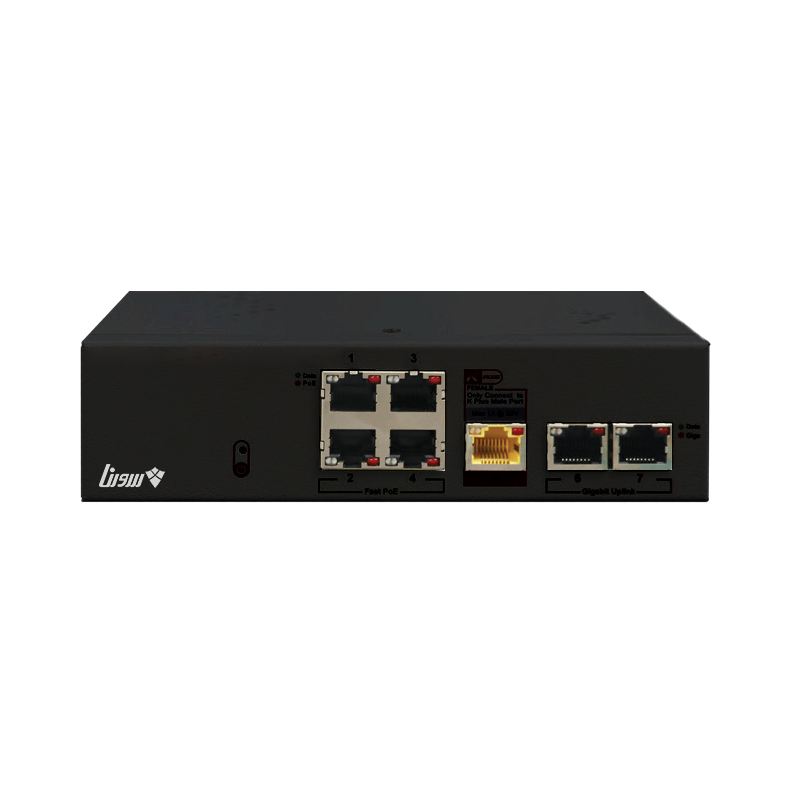

Sorena SRS-0402G-P
