KEY FEATURES |
|
||
7 Fast RJ45 POE Port |
9.4Gb Internal Bandwidth |
|
|
interface |
|
||
Total Port |
11 Ports |
|
|
Max POE Output |
200Watt |
|
|
POE Port Control |
808AR |
|
|
Fast RJ45 POE Port |
7 |
|
|
Gigabit RJ45 POE Port |
1 |
|
|
Gigabit RJ45 Uplink Port |
2 |
|
|
Gigabit SFP Uplink Port |
N/A |
|
|
Combo Uplink Port |
N/A |
|
|
Power Transmit RJ45 Port |
1 (Female) |
|
|
Dip Switch Ai |
Yes |
|
|
Network Performance |
|
||
Standard |
IEEE802.3x, IEEE802.3u, IEEE802.3az, IEEE802.3ab, IEEE802.3af, IEEE802.3at |
|
|
Protocols |
CSMA/CD |
|
|
Speed |
Ethernet 10Mbps (half duplex), 20Mbps (full duplex); 10BASE-T: 14,880bps/port Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX:14,8800bps/port Gigabit Ethernet 1000Mbps (half duplex), 2000Mbps (full duplex); 1000BASE-TX: 1488000bps/port |
|
|
Cabling |
10Base-TX:Cat 3 or above Cat.5 UTP(100m) POE=200M 100Base-TX:Cat 5 UTP(100m) POE=150M 1000Base-TX:Cat 6e UTP or Cat 6 UTP(120m) POE=150M |
|
|
Bandwidth |
9.4Gb Internal Bandwidth |
|
|
MAC Table |
32Kb |
|
|
Auto MDI-MDIX |
Yes All Port |
|
|
Console |
N/A |
|
|
Transfer Pattern |
Store & Forward |
|
|
Hardware |
|
||
Processor Type |
IC+ |
|
|
LED Panel |
POE Activity / Data Activity |
|
|
Main Board |
Double Layer |
|
|
Case |
Metal Case |
|
|
Mounting |
Rackmount / Desktop |
|
|
PD’S |
|
||
IP Camera |
Yes |
|
|
IP Phone |
Yes |
|
|
(+)2/1,(-)6/3 |
Yes |
|
|
General |
|||
IP Rating |
IP51 |
||
Web Language |
N/A |
||
Dimension |
245*145*45 mm |
||
Weight |
1.198kg |
||
Storage Temp |
-20°C ~ +60°C / 10% ~ 90% RH |
||
Operation Temp |
-15°C ~ +50°C / 10% ~ 90% RH |
||
Radiation Electromagnetic |
EN55016 |
||
Function Ai |
|||
250 Extend |
Yes / By Setting Dip Switch Number 2 P1-P7) |
||
Vlan |
Yes / By Setting Dip Switch Number 1(P1-P7) |
||
General |
|||
IP Rating |
IP51 |
||
Web Language |
N/A |
||
Dimension |
245*145*45 mm |
||
Weight |
1.198kg |
||
Storage Temp |
-20°C ~ +60°C / 10% ~ 90% RH |
||
Operation Temp |
-15°C ~ +50°C / 10% ~ 90% RH |
||
Radiation Electromagnetic |
EN55016 |
||
Status |
|||
LED |
Ethernet Interfaces 1000 LNK/ACT (Green), 10/100 LNK/ACT (Red) PoE Ethernet Interfaces, PoE-in-Use (af/at) 1000 LNK/ACT (Red), 10/100 LNK/ACT (Green) |
||
Power Supply |
|||
Power |
200~240V AC, 50~60Hz |
||
Redundant |
N/A |
||
LED Power |
Yes |
||
Power Cable |
Available |
||
Guarantee |
|||
Product Guarantee |
3 Year Platinum Guarantee |
||
MTBF |
100K hrs min. MIL-HDBK-217F (25°) |

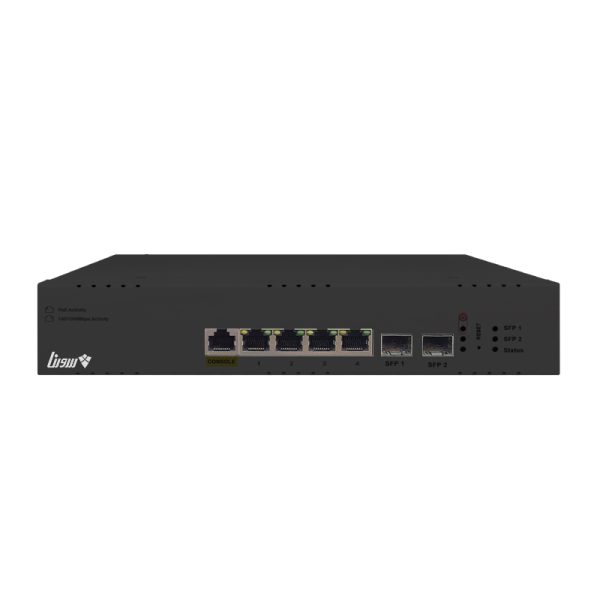

Sorena SRS-04G02F-P
