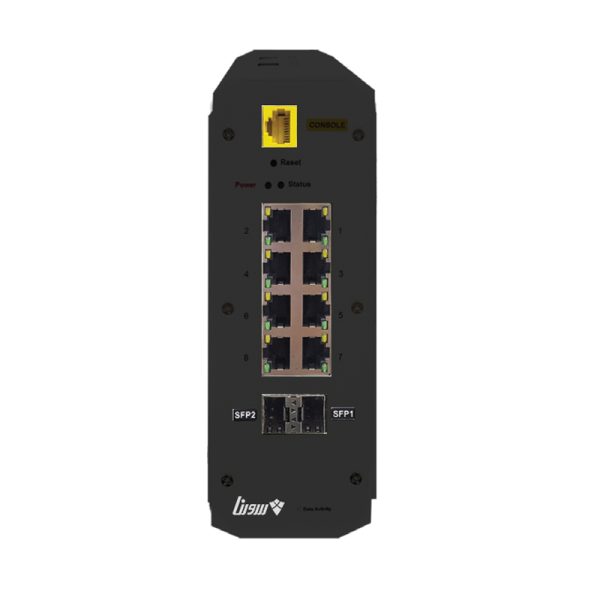

Sorena SRS-04G02F-PI

دسته بندی: سوییچ های تحت شبکه

KEY FEATURES

8 Gigabit RJ45 PoE Port (Up To 90Watt Per Port)

2 Gigabit SFP Uplink Port

720 Watt

20Gb Internal Bandwidth

Realtek Industrial Type

PoE Distance up to 120m

Aluminum Case

interface

Total Port

10 Ports

Max POE Output

720Watt

POE Port Control

Texas Instruments Chipset

Fast RJ45 POE Port

N/A

Gigabit RJ45 POE Port

8 Port (Port 1 AF / AT / BT – Port 2~8 AF / AT)

Fast RJ45 Uplink Port

N/A

Gigabit RJ45 Uplink Port

N/A

Gigabit SFP Uplink Port

2

Combo Uplink Port

N/A

Network Performance

Standard

IEEE802.3x, IEEE802.3u, IEEE802.3az, IEEE802.3ab, IEEE802.3af, IEEE802.3at (Up to 30Watt), IEEE802.3bt

Protocols

CSMA/CD

Router

N/A

Speed

Ethernet 10Mbps (half duplex), 20Mbps (full duplex); 10BASE-T: 14,880bps/port

Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX:14,8800bps/port

Gigabit Ethernet 1000Mbps (half duplex), 2000Mbps (full Duplex); 1000BASE-TX: 1488000bps/port

Cabling

10Base-TX:Cat 3 or above Cat.5 UTP(100m) POE=200M

100Base-TX:Cat 5 UTP(100m) POE=150m

1000BASE-TX:Cat 6e UTP or Cat 6 UTP(120m) POE=150M

Bandwidth

20Gb Internal Bandwidth

MAC Table

64Kb

Auto MDI-MDIX

Yes All Port

Console

Yes – Web & RS232 Layer2 Management  (Telnet Support)

Transfer Pattern

Store & Forward

Hardware

Processor Type

Realtek Industrial Type

LED Panel

Data Activity, PoE Activity

Main Board

Double Layer

Case

Aluminum Case

Mounting

DIN Rail

Security

Port Security, Access IP List, SSH & HTTPS Login, IEE 802.1 X MAB
(MAC Authentication Bypass) / Radius Server Authentication

PD’S

IP Camera

Yes

IP Phone

Yes

(+)5/4,(-)8/7

Optional

(+)2/1,(-)6/3

Yes

General

IP Rating

IP51

Web Language

English

Dimension

170*145*64 mm

Weight

1.1 Kg

Storage Temp

-50°C ~ +130°C / 10% ~ 90% RH

Operation Temp

-40°C ~ +110°C / 10% ~ 90% RH

Radiation Electromagnetic

EN55016

Status

LED

Ethernet Interfaces
1000 LNK/ACT (Orange-Green), 10/100 LNK/ACT (Orange)
PoE Ethernet Interfaces, PoE-in-Use (af/at/bt)
1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)

Power Supply

Power

DUAL Input – Redundant 48-54V – 2.5A

Redundant

Yes

LED Power

Yes

Power Cable

N/A

Guarantee

Product Guarantee

3 Year Platinum Guarantee

MTBF

100K hrs min. MIL-HDBK-217F (25°)
