KEY FEATURES |
||
|
8 Gigabit RJ45 POE Port (Port 1 AF / AT / BT – Port 2~8 AF / AT) 2 Gigabit SFP Uplink Port 200Watt |
20Gb Internal Bandwidth Realtek Processor PoE Distance up to 120m Metal Case |
|
|
interface |
||
|
Total Port |
10 Ports |
|
|
Max POE Output |
200 Watt |
|
|
POE Port Control |
Texas Instruments Chipset |
|
|
Fast RJ45 POE Port |
N/A |
|
|
Gigabit RJ45 POE Port |
8 Port (Port 1 AF / AT / BT – Port 2~8 AF / AT) |
|
|
Fast RJ45 Uplink Port |
N/A |
|
|
Gigabit RJ45 Uplink Port |
N/A |
|
|
Gigabit SFP Uplink Port |
2 |
|
|
Combo Uplink Port |
N/A |
|
|
Network Performance |
||
|
Standard |
IEEE802.3x, IEEE802.3u, IEEE802.3az, IEEE802.3ab, IEEE802.3af, IEEE802.3at (Up to 30Watt), IEEE802.3bt |
|
|
Protocols |
CSMA/CD |
|
|
Router |
N/A |
|
|
Speed |
Ethernet 10Mbps (half duplex), 20Mbps (full duplex); 10BASE-T: 14,880bps/port Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX:14,8800bps/port Gigabit Ethernet 1000Mbps (half duplex), 2000Mbps (full duplex); 1000BASE-TX: 1488000bps/port |
|
|
Cabling |
10Base-TX:Cat 3 or above Cat.5 UTP(100m) POE=200M 100Base-TX:Cat 5 UTP(100m) POE=150M 1000Base-TX:Cat 6e UTP or Cat 6 UTP(120m) POE=150M |
|
|
Bandwidth |
20Gb Internal Bandwidth |
|
|
MAC Table |
64Kb |
|
|
Auto MDI-MDIX |
Yes, All Port |
|
|
Console |
Yes – Web & RS232 Layer2 Management (Telnet Support) |
|
|
Transfer Pattern |
Store & Forward |
|
|
Hardware |
||
|
Processor Type |
Realtek Industrial Type |
|
|
LED Panel |
Data Activity, PoE Activity |
|
|
Main Board |
Double Layer |
|
|
Case |
Aluminum Case |
|
|
Mounting |
DIN Rail |
|
|
Security |
Port Security, Access IP List, SSH & HTTPS Login, IEE 802.1 X MAB |
|
|
PD’S |
||
|
IP Camera |
Yes |
|
|
IP Phone |
Yes |
|
|
(+)5/4,(-)8/7 |
Optional |
|
|
(+)2/1,(-)6/3 |
Yes |
|
|
General |
||
|
IP Rating |
IP51 |
|
|
Web Language |
English |
|
|
Dimension |
275*172*45 mm |
|
|
Weight |
625 g |
|
|
Storage Temp |
-20°C ~ +70°C / 10% ~ 90% RH |
|
|
Operation Temp |
-15°C ~ +60°C / 10% ~ 90% RH |
|
|
Radiation Electromagnetic |
EN55016 |
|
|
Status |
||
|
LED |
Ethernet Interfaces |
|
|
Power Supply |
||
|
Power |
200~240V AC, 50~60Hz |
|
|
Redundant |
N/A |
|
|
LED Power |
Yes |
|
|
Power Cable |
Available |
|
|
Guarantee |
||
|
Product Guarantee |
3 Year Platinum Guarantee |
|
|
MTBF |
100K hrs min. MIL-HDBK-217F (25°) |
|

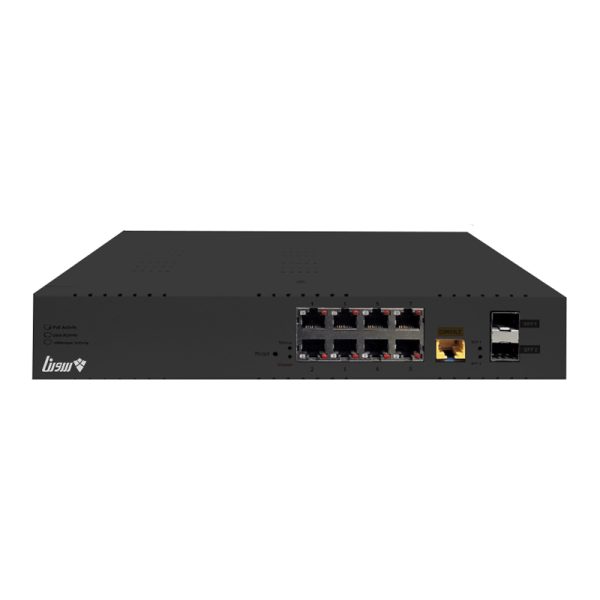

Sorena SRS-08G02F-P
