KEY FEATURES |
|
|
||
|
8 Gigabit RJ45 PoE Port |
24Gb Internal Bandwidth Metal Case |
|
||
|
interface |
|
|||
|
Total Port |
12 Ports |
|
||
|
Max POE Output |
200Watt |
|
||
|
POE Port Control |
808AR |
|
||
|
Fast RJ45 POE Port |
N/A |
|
||
|
Gigabit RJ45 POE Port |
8 |
|
||
|
Fast RJ45 Uplink Port |
N/A |
|
||
|
Gigabit RJ45 Uplink Port |
2 |
|
||
|
Gigabit SFP Uplink Port |
2 |
|
||
|
Combo Uplink Port |
N/A |
|
||
|
Dip Switch Ai |
Yes |
|
||
|
Network Performance |
|
|||
|
Standard |
IEEE802.3x, IEEE802.3u, IEEE802.3az, IEEE802.3ab, IEEE802.3af, IEEE802.3at |
|
||
|
Protocols |
CSMA/CD |
|
||
|
Speed |
Ethernet 10Mbps (half duplex), 20Mbps (full duplex); 10BASE-T: 14,880bps/port Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX:14,8800bps/port Gigabit Ethernet 1000Mbps (half duplex), 2000Mbps (full duplex); 1000BASE-TX: 1488000bps/port |
|
||
|
Cabling |
10Base-TX: Cat 3 or above Cat.5 UTP (100m) POE=200M 100Base-TX: Cat 5 UTP (100m) POE=150M 1000Base-TX:Cat 6e UTP or Cat 6 UTP(120m) POE=150M |
|
||
|
Bandwidth |
24Gb Internal Bandwidth |
|
||
|
MAC Table |
32Kb |
|
||
|
Auto MDI-MDIX |
Yes, All Port |
|
||
|
Console |
N/A |
|
||
|
Transfer Pattern |
Store & Forward |
|
||
|
Hardware |
|
|||
|
Processor Type |
IC+ |
|
||
|
LED Panel |
POE Activity / Data Activity |
|
||
|
Main Board |
Double Layer |
|
||
|
Case |
Metal Case |
|
||
|
Mounting |
Rackmount / Desktop |
|
||
|
PD’S |
|
|||
|
IP Camera |
Yes |
|
||
|
IP Phone |
Yes |
|
||
|
)+)2/1,(-)6/3 |
Yes |
|
||
|
General |
||||
|
IP Rating |
IP51 |
|||
|
Web Language |
N/A |
|||
|
Dimension |
219*149*45 mm |
|||
|
Weight |
1.198 g |
|||
|
Storage Temp |
-20°C ~ +60°C / 10% ~ 90% RH |
|||
|
Operation Temp |
-15°C ~ +50°C / 10% ~ 90% RH |
|||
|
Radiation Electromagnetic |
EN55016 |
|||
|
Function Ai |
||||
|
250 Extend |
Yes / By Setting Dip Switch Number 1 (P1-P8) |
|||
|
Vlan |
Yes / By Setting Dip Switch Number 2 (P1-P8) |
|||
|
Watchdog |
Yes / By Setting Dip Switch Number 3 (P1-P8) |
|||
|
2.5G SFP |
Yes / By Setting Dip Switch Number 4 (P1-P8) |
|||
|
Status |
||||
|
LED |
Ethernet Interfaces 1000 LNK/ACT (Green), 10/100 LNK/ACT (Green) PoE Ethernet Interfaces, PoE-in-Use (af/at) 1000 LNK/ACT (Orange), 10/100 LNK/ACT (Green) |
|||
|
Power Supply |
||||
|
Power |
200~240V AC, 50~60Hz |
|||
|
Redundant |
N/A |
|||
|
LED Power |
Yes |
|||
|
Power Cable |
Available |
|||
|
Guarantee |
||||
|
Product Guarantee |
3 Year Platinum Guarantee |
|||
|
MTBF |
100K hrs min. MIL-HDBK-217F (25°) |
|||

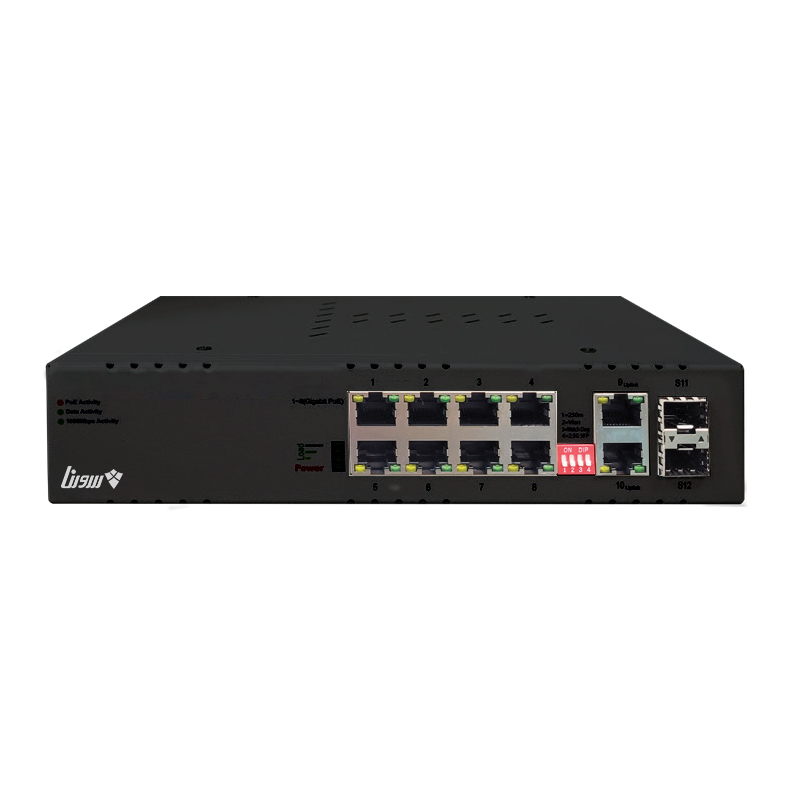

Sorena SRS-08G02G02F-P
