KEY FEATURES |
||
8 Gigabit RJ45 Port |
Realtek Processor Manage & Core Switch |
|
interface |
||
Total Port |
26 Ports |
|
Max POE Output |
N/A |
|
POE Port Control |
N/A |
|
Fast RJ45 Port |
N/A |
|
Gigabit RJ45 Port |
8 |
|
Fast RJ45 Uplink Port |
N/A |
|
Gigabit RJ45 Uplink Port |
N/A |
|
Gigabit SFP Uplink Port |
18 |
|
Combo Uplink Port |
N/A |
|
Network Performance |
||
Standard |
IEEE802.3x, IEEE802.3u, IEEE802.3az, IEEE802.3ab |
|
Protocols |
CSMA/CD |
|
Router |
N/A |
|
Speed |
Ethernet 10Mbps (half duplex), 20Mbps (full duplex); 10BASE-T: 14,880bps/port Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX:14,8800bps/port Gigabit Ethernet 1000Mbps (half duplex), 2000Mbps (full duplex); 1000BASE-TX: 1488000bps/port |
|
Cabling |
10Base-TX: Cat 5 or above (100m) 100Base-TX: Cat 6 UTP (100m) 1000Base-TX: Cat 6 UTP or above(100m) |
|
Bandwidth |
52Gb Internal Bandwidth |
|
MAC Table |
64Kb |
|
Auto MDI-MDIX |
Yes, All Port |
|
Console |
Yes – Web & RS232 Layer2 Management (Telnet Support) |
|
Transfer Pattern |
Store & forward |
|
Hardware |
||
Processor Type |
Realtek |
|
LED Panel |
Data Activity |
|
Main Board |
Double Layer |
|
Case |
Metal Case |
|
Mounting |
Rackmount |
|
PD’S |
||
IP Camera |
N/A |
|
IP Phone |
N/A |
|
(+)5/4, (-)8/7 |
N/A |
|
(+)2/1, (-)6/3 |
N/A |
|
General |
||
IP Rating |
IP51 |
|
Web Language |
English |
|
Dimension |
440*179*45 mm |
|
Weight |
1.917 kg |
|
Storage Temp |
-20°C~+60°C / 10%~90% RH |
|
Operation Temp |
-15°C~+60°C / 10%~90% RH |
|
Radiation Electromagnetic |
EN55016 |
|
Status |
||
LED |
Ethernet Interfaces 1000 LNK/ACT (Orange), 10/100 LNK/ACT (Green) |
|
Power Supply |
||
Power |
200~240V AC, 50~60Hz |
|
Redundant |
N/A |
|
LED Power |
Yes |
|
Power Cable |
Available |
|
Guarantee |
||
Product Guarantee |
3 Year Platinum Guarantee |
|
MTBF |
100K hrs min. MIL-HDBK-217F (25°) |

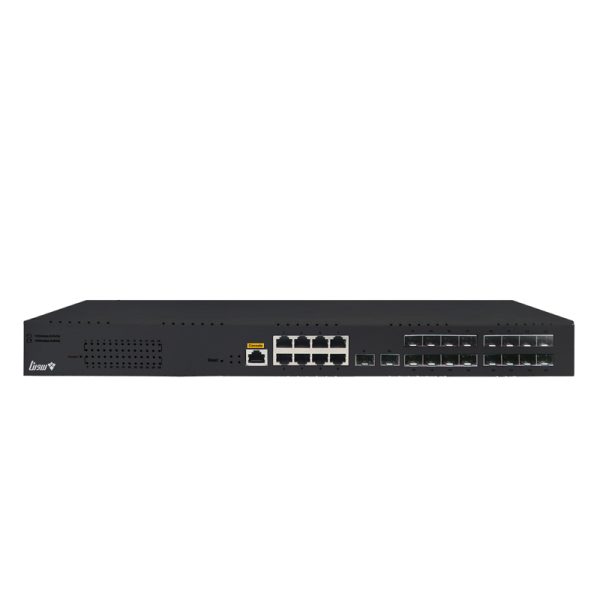

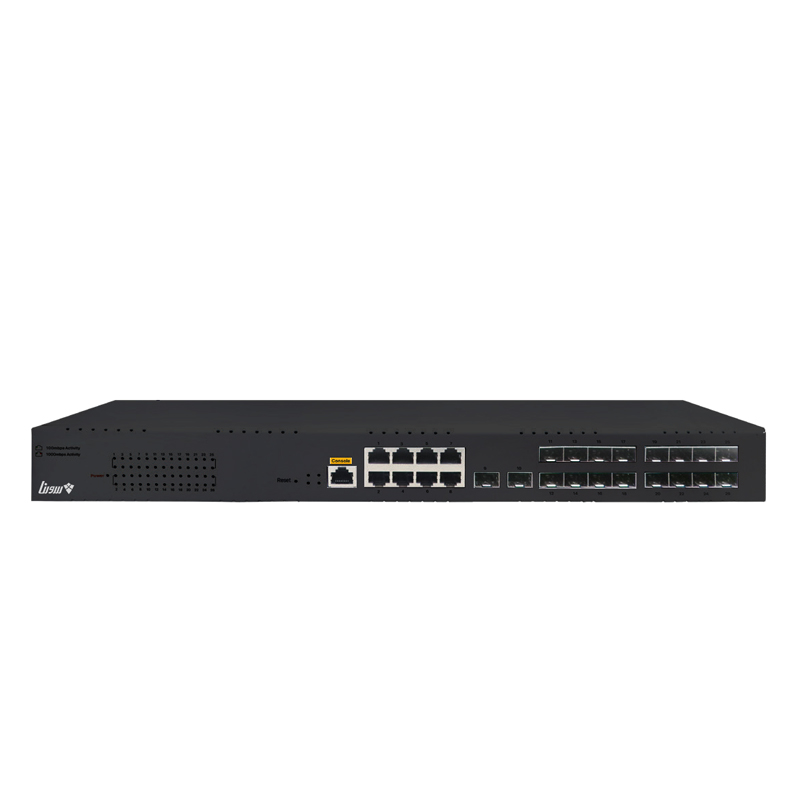

Sorena SRS-08G18F-26-C
