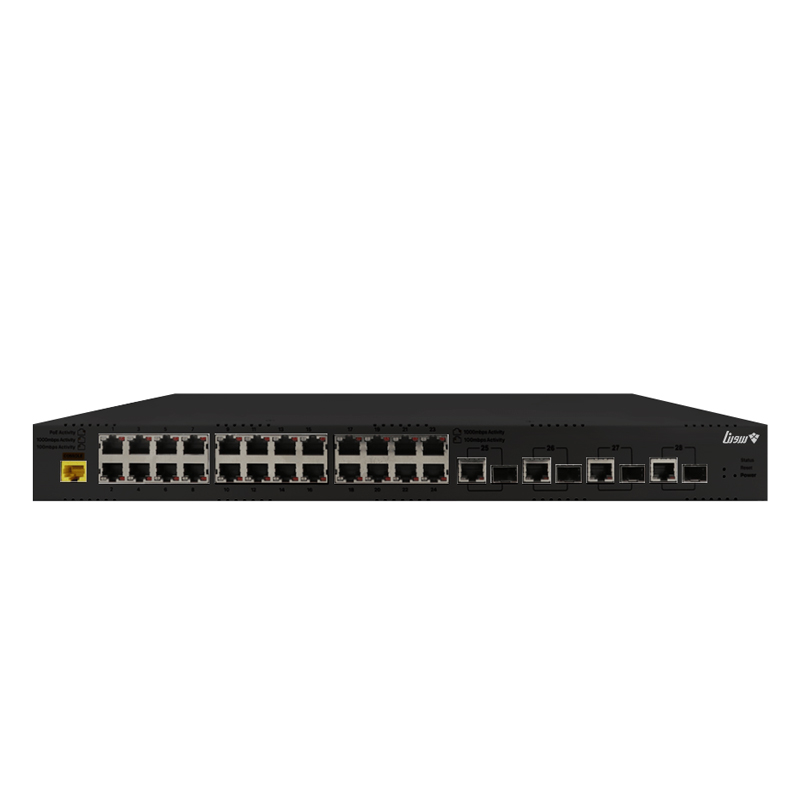

Sorena SRS-24G04G04F-P

KEY FEATURES

24 Gigabit RJ45 POE Port (Port 1~4 AF / AT / BT – Port 5~24 AF / AT)

4 Gigabit RJ45 Uplink Port
4 Gigabit SFP Uplink Port
600 Watt

56Gb Internal Bandwidth
Realtek Processor
PoE Distance up to 120m
Metal Case

interface

Total Port

32 Ports

Max POE Output

600Watt

POE Port Control

Texas Instruments Chipset

Fast RJ45 POE Port

N/A

Gigabit RJ45 POE Port

24 Port (Port 1~4 AF / AT / BT – Port 5~24 AF / AT)

Fast RJ45 Uplink Port

N/A

Gigabit RJ45 Uplink Port

4

Gigabit SFP Uplink Port

4

Combo Uplink Port

Yes (Port 25~ Port 32)

Network Performance

Standard

IEEE802.3x, IEEE802.3u, IEEE802.3az, IEEE802.3ab, IEEE802.3af, IEEE802.3at(Up to 30Watt), IEEE802.3bt

Protocols

CSMA/CD

Router

N/A

Speed

Ethernet 10Mbps (half duplex), 20Mbps (full duplex); 10BASE-T: 14,880bps/port
Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX:14,8800bps/port
Gigabit Ethernet 1000Mbps (half duplex), 2000Mbps (full duplex); 1000BASE-TX: 1488000bps/port

Cabling

10Base-TX:Cat 3 or above Cat.5 UTP(100m) POE=200M
100Base-TX:Cat 5 UTP(100m) POE=150M
1000Base-TX:Cat 6e UTP or Cat 6 UTP(120m) POE=150M

Bandwidth

56Gb Internal Bandwidth

MAC Table

64Kb

Auto MDI-MDIX

Yes All Port

Console

Yes – Web & RS232 Layer2 Management (Talent Support)

Hardware

Processor Type

Realtek

LED Panel

POE Activity / Data Activity

Main Board

Double Layer

Case

Metal Case

Mounting

Rackmount

PD’S

IP Camera

Yes

IP Phone

Yes

(+)5/4,(-)8/7

Optional

(+)2/1,(-)6/3

Yes

General

IP Rating

IP51

Web Language

English

Dimension

440*290*45 mm

Weight

2.65 Kg

Storage Temp

-20°~+60°C / 10%~90%RH

Operation Temp

-15°~+50°C / 10%~90%RH

Radiation Electromagnetic

EN55016

Status

 LED

Ethernet Interfaces
1000 LNK/ACT (Orange-Green), 10/100 LNK/ACT (Orange)
PoE Ethernet Interfaces, PoE-in-Use (af/at/bt)
1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)

Power Supply

Power

200~240V AC, 50~60Hz

Redundant

N/A

LED Power

Yes

Power Cable

Available

Guarantee

Product Guarantee

3 Year Platinum Guarantee

MTBF

100K hrs min. MIL-HDBK-217F (25°)
