KEY FEATURES |
||
|

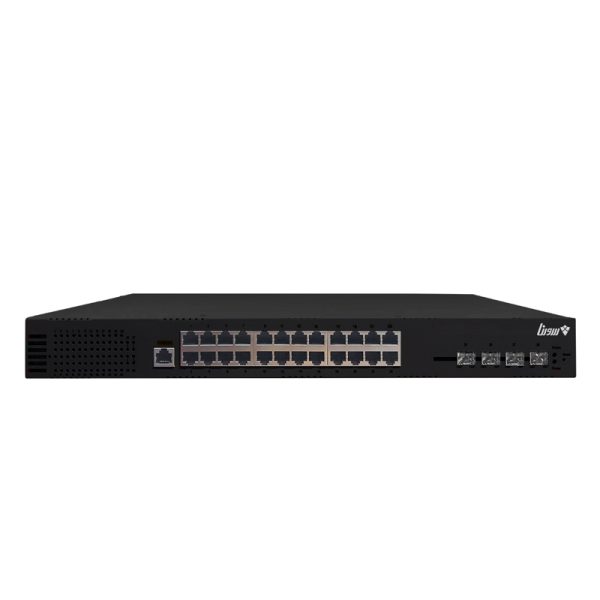

24 Gigabit RJ45 POE Port 4 SFP (10Gigabit) Uplink Port |
Realtek Processor |
|
|
interface |
||
|
Total Port |
28 Ports |
|
|
Max POE Output |
600Watt |
|
|
POE Port Control |
Texas Instruments Chipset |
|
|
Fast RJ45 POE Port |
N/A |
|
|
Gigabit RJ45 POE Port |
24 Port |
|
|
Fast RJ45 Uplink Port |
N/A |
|
|
Gigabit RJ45 Uplink Port |
N/A |
|
|
10 Gigabit SFP Uplink Port |
4 |
|
|
Combo Uplink Port |
N/A |
|
|
Network Performance |
||
|
Standard |
IEEE802.3x, IEEE802.3u, IEEE802.3az, IEEE802.3ab, IEEE802.3af, IEEE802.3at(Up to 30Watt), IEEE802.3bt |
|
|
Protocols |
CSMA/CD |
|
|
Router |
N/A |
|
|
Speed |
Ethernet 10Mbps (half duplex), 20Mbps (full duplex); 10BASE-T: 14,880bps/port Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX:14,8800bps/port Gigabit Ethernet 1000Mbps (half duplex), 2000Mbps (full Duplex); 1000BASE-TX: 1488000bps/port |
|
|
Cabling |
10Base-TX: Cat 5 or above (120m) POE=120M |
|
|
Bandwidth |
128Gb Internal Bandwidth |
|
|
MAC Table |
512Kb |
|
|
Auto MDI-MDIX |
Yes All Port |
|
|
Console |
Yes – Web & RS232(Talent Support) Layer3 Management |
|
|
Hardware |
||
|
Processor Type |
Realtek |
|
|
LED Panel |
POE Activity / Data Activity |
|
|
Main Board |
Double Layer |
|
|
Case |
Metal Case |
|
|
Mounting |
Rackmount |
|
|
PD’S |
||
|
IP Camera |
Yes |
|
|
IP Phone |
Yes |
|
|
(+)5/4,(-)8/7 |
Optional |
|
|
(+)2/1,(-)6/3 |
Yes |
|
|
General |
||
|
IP Rating |
IP51 |
|
|
Web Language |
English |
|
|
Dimension |
440*282*45 mm |
|
|
Weight |
2.65 Kg |
|
|
Storage Temp |
-20°~+60°C / 10%~90%RH |
|
|
Operation Temp |
-15°~+50°C / 10%~90%RH |
|
|
Radiation Electromagnetic |
EN55016 |
|
|
Function Ai |
||
|
250 Extend |
Yes / By Setting Dip Switch Number 2(P1-P7) |
|
|
Vlan |
Yes / By Setting Dip Switch Number 1(P1-P7) |
|
|
Status |
||
|
LED |
Ethernet Interfaces 1000 LNK/ACT (Red), 10/100 LNK/ACT (Green) PoE Ethernet Interfaces, PoE-in-Use (af/at) 1000 LNK/ACT (Red), 10/100 LNK/ACT (Green) |
|
|
Power Supply |
||
|
Power |
200~240V AC, 50~60Hz |
|
|
Redundant |
N/A |
|
|
LED Power |
Yes |
|
|
Power Cable |
Available |
|
|
Guarantee |
||
|
Product Guarantee |
3 Year Platinum Guarantee |
|
|
MTBF |
100K hrs min. MIL-HDBK-217F (25°) |
|
