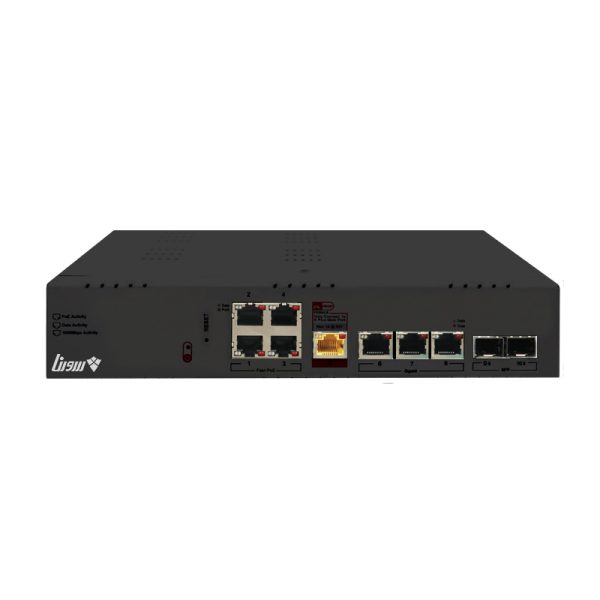

Sorena SRS-04G03G02F-P

دسته بندی: سوییچ های تحت شبکه

KEY FEATURES



4 Gigabit RJ45 POE Port

3 Gigabit RJ45 Uplink Port

2 Gigabit SFP Uplink Port

1 (Female)Fast RJ45 Uplink Port

120 Watt

18.2Gb Internal Bandwidth

IC+ Processor

PoE Distance up to 120m

Metal Case

interface

Total Port

10 Ports

Max POE Output

120Watt

POE Port Control

808AR

Fast RJ45 POE Port

N/A

Gigabit RJ45 POE Port

4 Port

Fast RJ45 Uplink Port

N/A

Gigabit RJ45 Uplink Port

3

Gigabit SFP Uplink Port

2

Combo Uplink Port

N/A

Power Transmit RJ45 Port
Fast RJ45 Uplink Port

1 (Female)

Network Performance

Standard

IEEE802.3x, IEEE802.3u, IEEE802.3az, IEEE802.3ab, IEEE802.3af, IEEE802.3at (Up to 30Watt), IEEE802.3bt

Protocols

CSMA/CD

Router

N/A

Speed

Ethernet 10Mbps (half duplex), 20Mbps (full duplex); 10BASE-T: 14,880bps/port
Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX:14,8800bps/port
Gigabit Ethernet 1000Mbps (half duplex), 2000Mbps (full duplex); 1000BASE-TX: 1488000bps/port

Cabling

10Base-TX:Cat 3 or above Cat.5 UTP(100m) POE=200M
100Base-TX:Cat 5 UTP(100m) POE=150M
1000Base-TX:Cat 6e UTP or Cat 6 UTP(120m) POE=150M

Bandwidth

18.2Gb Internal Bandwidth

MAC Table

64Kb

Auto MDI-MDIX

Yes All Port

Web

Yes – Lite  Management (Non-CLI)

Hardware

  Processore Type

IC+

  LED Panel

Data Activity, PoE Activity

  Main Board

Double Layer

  Case

Metal Case

  Mounting

Rackmount / desktop

  Security

Port Security, Access IP List, SSH & HTTPS Login, IEE 802.1 X MAB
(MAC Authentication Bypass) / Radius Server Authentication

PD’S

 IP Camera

Yes

 IP Phone

Yes

(+)5/4,(-)8/7

Optional

(+)2/1,(-)6/3

Yes

General

IP Rating

IP51

Web Language

English

Dimension

250*105*45 mm

Weight

625 g

Storage Temp

-20°C ~ +70°C / 10% ~ 90% RH

Operation Temp

-15°C ~ +60°C / 10% ~ 90% RH

Radiation Electromagnetic

EN55016

Status

LED

Ethernet Interfaces
1000 LNK/ACT (Green), 10/100 LNK/ACT (Green)
PoE Ethernet Interfaces, PoE-in-Use (af/at)
1000 LNK/ACT (Orange), 10/100 LNK/ACT (Green)

Power Supply

Power

200~240V AC, 50~60Hz

Redundant

N/A

LED Power

Yes

Power Cable

Available

Guarantee

Product Guarantee

3 Year Platinum Guarantee

MTBF

100K hrs min. MIL-HDBK-217F (25°)
